E-Box Pebbles – NG – Conventional Flue (112-177) – Discontinued, limited parts available
112-177
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | GZ8314 |
|
Convector Box Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 2 | n/a |
|
Instruction Kits
| This part cannot be ordered via this website. Please contact Gazco for more information. | ||||
| 3 | GZ9137 |
|
Sensor Fixing Kit | In Stock £39.91 | ||||
| 4 | FA0137 |
|
In Stock £86.26 | |||||
| 5 | GZ9188 |
|
Burner Assembly - Natural Gas | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 6 | N/A |
|
Only for LPG range
| This part is not serviceable and cannot be ordered as a spare. | ||||
| 7 | GZ4462 |
|
Burner Tray | In Stock £24.00 | ||||
| 8 | CE0273 |
|
Burner Cover Gasket | In Stock £2.95 | ||||
| 9 | N/A |
|
Only for LPG range
| This part is not serviceable and cannot be ordered as a spare. | ||||
| 10 | GC0095 |
|
Restrictor Elbow | In Stock £16.66 | ||||
| 11 | PI0080 |  |
Oxypilot - Natural Gas
This part will soon be obsolete |
In Stock £179.00 | ||||
| 12 | N/A |
|
Only for LPG range
| This part is not serviceable and cannot be ordered as a spare. | ||||
| 13 | GC0163K |
|
Control Valve Kit | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 14 | GZ4679 |
|
Front Baffle | In Stock £20.93 | ||||
| 15 | CE0503 |
|
Flame Baffle
This part will soon be obsolete |
In Stock £64.25 | ||||
| 16 | CE0502 |
|
Front Pebble | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 17 | CE0504 |
|
Pebble Set | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 18 | GZ8372 |
|
Glass Frame Assembly | In Stock £135.00 | ||||
| 19 | GZ9030 |
|
Control Valve Mounting Bracket | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 20 | IN0064 |
|
Elbow Injector - 063 | In Stock £11.10 | ||||
| 21 | N/A |
|
Only for LPG range
| This part is not serviceable and cannot be ordered as a spare. | ||||
| 22 | GZ3866 |
|
Aeration Cover | In Stock £1.85 | ||||
| 23 | N/A |
|
Only for LPG range
| This part is not serviceable and cannot be ordered as a spare. | ||||
| 24 | CE0515 |
|
Ceramic Panel Right Hand | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 25 | CE0517 |
|
Ceramic Panel Back
This part will soon be obsolete |
In Stock £9.46 | ||||
| 26 | CE0514 |
|
Ceramic Panel Left Hand | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 27 | CE0516 |
|
Ceramic Panel Top | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 28 | GZ9092 |
|
Battery Duct Assembly | In Stock £16.40 | ||||
| 29 | FA0413 |
|
Side Pyrotape Seal - Single Piece | In Stock £1.85 | ||||
| 30 | FA0412 |
|
Upper Pyrotape Seal - Single Piece | In Stock £2.05 | ||||

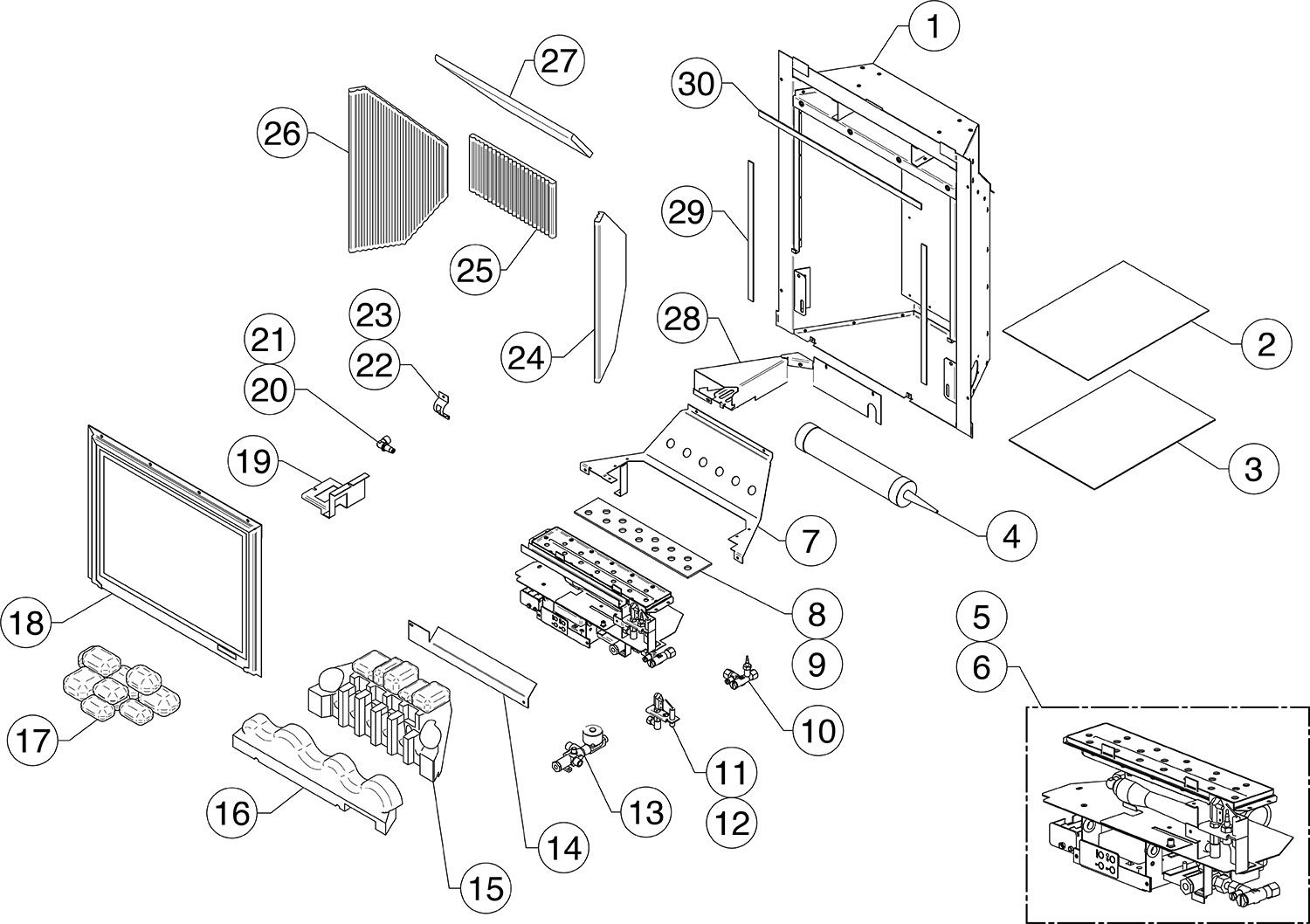

Drawing: 112-177
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | EL0470 |
|
Control Box | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 2 | EL0472 |
|
Handset | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 3 | EL0484 |
|
Battery Holder | In Stock £6.20 | ||||
| 4 | EL0482 |
|
Battery Cable | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 5 | EL0471 |
|
Infra Red Sensor & Cable | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 6 | EL0480 |
|
Ignition Lead | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 7 | EL0476 |
|
Touchpad | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 8 | EL0478 |
|
Touchpad Cable | This part is now obsolete and can no longer be ordered as a spare. | ||||
Drawing: 112-177
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
112-177
DIMENSIONS:
483 x 550 x 190mm (w x h x d)
