Logic HE Stone Effect – LPG – Conventional Flue – Remote (101-649)
101-649
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | ME11519 | Restrictor Plate | In Stock £11.88 | |||
| 2 | FA0354 |  |
Silicone Seal - Inlet | In Stock £2.28 | ||
| 3 | ME3746 | Gasket Plate | In Stock £3.38 | |||
| 4 | n/a | Instruction Manual & Fixing Kit
| This part cannot be ordered via this website. Please contact Gazco for more information. | |||
| 5 | CE1085 | Ceramic Stones | In Stock £40.52 | |||
| 6 | GZ8372 |  |
Glass Frame Assembly | Available to Order £149.86 | ||
| 7 | GZ11167 | Engine Assembly - LPG Please note - Serial number required when ordering this part.
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | GZ6188 | Support Bracket | In Stock £39.40 | |||
| 9 | GZ6625 | Enamel Panel Surround Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | GZ6757 | Retaining Bracket | This part is now obsolete and can no longer be ordered as a spare. | |||
| FA0412 |  |
Upper Pyrotape Seal - Single Piece | In Stock £2.28 | |||
| FA0413 |  |
Side Pyrotape Seal - Single Piece x2 Required
| In Stock £2.05 | |||
| 5037-1 |  |
Thermic Seal Adhesive 50ml Single Bottle | In Stock £6.61 | |||
Drawing: 101-649
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ8410 | Burner Assembly - LPG | This part is now obsolete and can no longer be ordered as a spare. | |||
| 2 | PI0037 |  |
Oxypilot - LPG | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 3 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 4 | FA0295 | 8mm Brass Tube Inlet 2 units required per appliance
| In Stock £4.44 | |||
| 5 | GC0024 | Shear Nut & Olive | In Stock £7.10 | |||
| 6 | GC0088K |  |
Mertik Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 7 | FA0294 | 3/8 BSP Brass Adaptor 2 units required per appliance
| In Stock £7.10 | |||
| 8 | FA0011 |  |
8mm Olive 3 units required per appliance
| In Stock £1.50 | ||
| 9 | GZ11198 | Main Control Bracket | This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | FA0029 | 1/4" BSP Nut for 8mm Pipe | In Stock £1.78 | |||
| 11 | IN0065 |  |
Elbow Injector - 102 | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 12 | GZ8393 | Burner Assembly - Natural Gas | This part is now obsolete and can no longer be ordered as a spare. | |||
| 13 | GZ3867 | Aeration Plate | In Stock £6.91 | |||

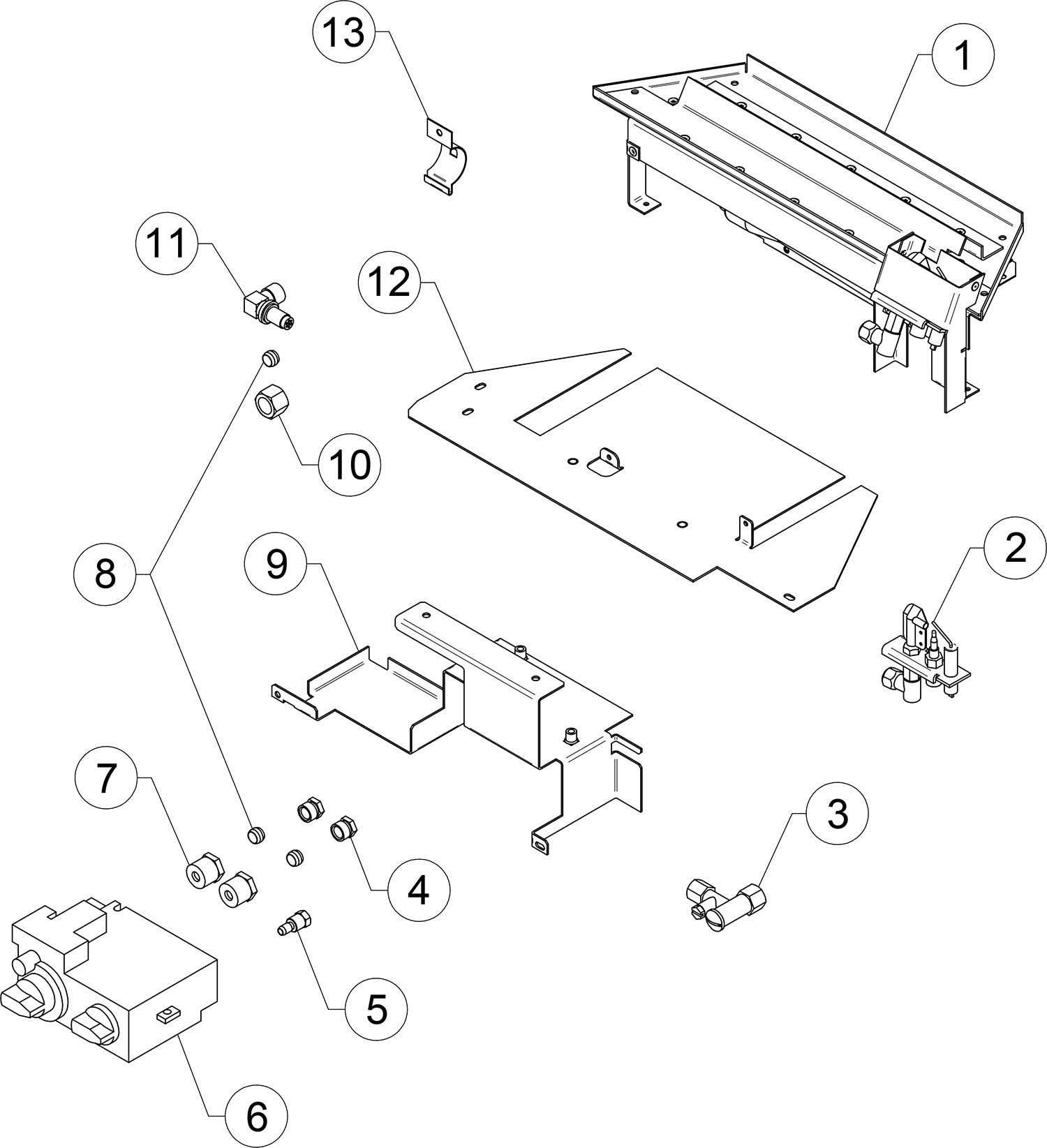

Drawing: 101-649
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1+3 | EL0647 |  |
Standard Receiver and Cable | In Stock £108.50 | ||
| 2 | EL0239 |  |
Standard Remote Handset | In Stock £95.24 | ||
| 3 | EL0237 |  |
Standard Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver.
This part will soon be obsolete |
In Stock £10.06 | ||
| 3A | EL0237A | Pre 2016 Remote Cable Connection Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 standard receiver.
This part will soon be obsolete |
In Stock £9.16 | |||
| 4+6 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 5 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 6 | EL0238 | Thermostatic Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver.
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 6A | EL0238A | Thermostatic Receiver Cable Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 thermostatic receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 7 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 8 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 9 | GC0088K | |
Mertik Valve Kit Please note - Serial number required when ordering this part,
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 10 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 11 | EL0241 |  |
Micro Switch & Screw | In Stock £160.31 | ||
| 12 | GC0090 |  |
Ignition Lead | In Stock £26.36 | ||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-649
DIMENSIONS:
483 x 550 x 190mm (w x h x d)
