Riva F67 Pedestal – NG – Balanced Flue (8741BFLUC) – Discontinued, limited parts available
8741BFLUC
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | N/A | N/A Fire Box Assembly
| This part is not serviceable and cannot be ordered as a spare. | |||
| 2 | GZ3365 | Top Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||
| 3 | GZ0284 | Explosion Relief Flap Assembly | This part is not serviceable and cannot be ordered as a spare. | |||
| 4 | GZ2014 | Explosion Relief Flap Assembly - Bottom | This part is now obsolete and can no longer be ordered as a spare. | |||
| 5 | GZ6086 | Shroud | This part is now obsolete and can no longer be ordered as a spare. | |||
| 6 | 8548 | Balanced Flue Collar - Matt Black | In Stock £55.25 | |||
| 7 | GZ6087 | Backpanel | This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | GZ6093 | Pedestal Wrap Base Balanced Flue | This part is now obsolete and can no longer be ordered as a spare. | |||
| 9 | GZ6094 | Pedestal Neck Weld Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | GZ6288 | Pedestal Base Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 11 | n/a | Instruction Kit
| This part cannot be ordered via this website. Please contact Gazco for more information. | |||
| 12 | IN0035 | Elbow Injector - 410 | In Stock £11.50 | |||
| 13 | GZ3865 | Aeration Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | CE0347 | Ceramic Panel Right Hand | This part is now obsolete and can no longer be ordered as a spare. | |||
| 15 | 8739BK67 | Riva 67 Spectrum Frame Conventional Flue | This part is now obsolete and can no longer be ordered as a spare. | |||
| 16 | GZ3747 | Glass Frame Assembly | Available to Order £395.34 | |||
| 17 | CE0306 | Log Set | This part is now obsolete and can no longer be ordered as a spare. | |||
| 18 | CE0346 | Side Panel Left Hand - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 19 | CE0424 | Granule Pack | In Stock £54.95 | |||
| 20 | CE0345 | Back Panel - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 21 | GZ3122 | Burner Assembly - Natural Gas | This part is now obsolete and can no longer be ordered as a spare. | |||
| 22 | GZ3367 | Log Support / Air Guide | This part is now obsolete and can no longer be ordered as a spare. | |||
| 23 | GZ3118 | Pilot Pipe | This part is now obsolete and can no longer be ordered as a spare. | |||
| 24 | PI0051 |  |
Pilot Burner Body | In Stock £15.90 | ||
| 25 | PI0026 |  |
Injector - 27 | In Stock £11.27 | ||
| 26 | PI0053 |  |
Electrode | In Stock £9.05 | ||
| 27 | PI0063 |  |
Thermocouple | In Stock £18.85 | ||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

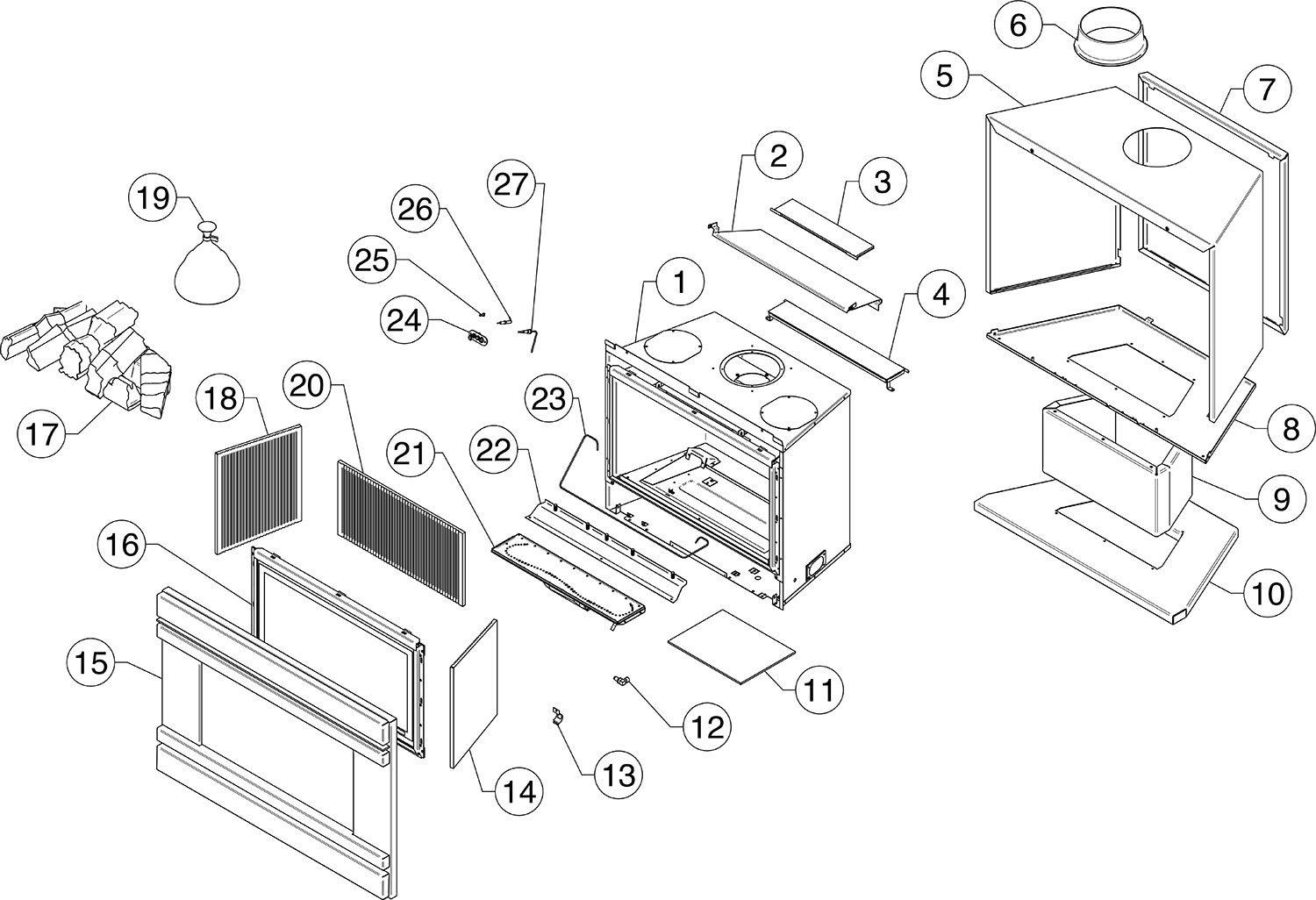

Drawing: 8741BFLUC
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0088K |  |
Mertek Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 2 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 3 | GC0166 |  |
Mag Unit | In Stock £54.00 | ||
| 4 | EL0241 | Micro Switch & Screw | Available to Order £160.31 | |||
| 5 | EL0239 |  |
Standard Remote Handset | In Stock £95.24 | ||
| 6 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 7+10 | EL0647 |  |
Metrik STD Receiver and MK2 Cable | In Stock £108.50 | ||
| 8+9 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 9 | EL0238 | Thermostatic Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 9A | EL0238A | Thermostatic Receiver Cable Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 thermostatic receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | EL0237 |  |
Standard Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver
This part will soon be obsolete |
In Stock £10.06 | ||
| 10A | EL0237A | Pre 2016 Remote Cable Connection Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 standard receiver
This part will soon be obsolete |
In Stock £9.16 | |||
| 11 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 12 | GC0090 | Ignition Lead | Available to Order £26.36 | |||
Drawing: 8741BFLUC
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
8741BFLUC
DIMENSIONS:
880 x 834 x 420mm (w x h x d)
