Riva Vision Medium Logs Top Exit – LPG – Conventional Flue (526-539)
526-539
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | 8549GB | Optional top exit flue | This part is not serviceable and cannot be ordered as a spare. | |||
| 2 | GZ11158 | Glass Pane Assembly - Top | This part is not serviceable and cannot be ordered as a spare. | |||
| 3 | GZ8861 | Top Plate | This part is not serviceable and cannot be ordered as a spare. | |||
| 4 | ME8865 | Rear Panel | This part is not serviceable and cannot be ordered as a spare. | |||
| 5 | EL0001 |  |
Flue Sensor | In Stock £11.88 | ||
| 6 | GZ11214 |  |
Aeration Cover | In Stock £6.61 | ||
| 7 | IN0068 | Injector - 128 | Part available for Trade Account Customers only — Find your nearest retailer | |||
| 8 | GZ10913 | Firebox Bracket Right Hand | In Stock £9.35 | |||
| 9 | GZ8857 | Side Panel Right Hand - Matt Black | This part is not serviceable and cannot be ordered as a spare. | |||
| 10 | GZ12255 | Engine Assembly - LPG Please note - Serial number required when ordering this part.
| Available to Order £442.90 | |||
| 11 | GZ8852 | Base Plate | This part is not serviceable and cannot be ordered as a spare. | |||
| 12 | PI0075 |  |
Electrode | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 13 | PI0074 |  |
Thermocouple | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 14 | PI0070 |  |
Pilot Burner - LPG | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 15 | PR2030 | Instruction Manual | This part is now obsolete and can no longer be ordered as a spare. | |||
| 16 | GZ11015 |  |
Side Panel Right Hand - Reflective | In Stock £45.76 | ||
| 17 | GZ11041 | Log Bar | In Stock £89.35 | |||
| 18 | CE1304 |  |
Log Set | In Stock £192.04 | ||
| 19 | GZ11026 | Control Cover Assembly | Available to Order £143.20 | |||
| 20 | GZ11025 | Main Door Assembly | In Stock £653.78 | |||
| 21 | GZ11042 | Glass Door Assembly | Available to Order £371.86 | |||
| 22 | GZ11001 |  |
Emberbed & Burner Assembly | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 23 | GZ11014 | Side Panel Left Hand - Reflective | In Stock £45.76 | |||
| 24 | CE1311 | Back Panel - Vermiculite | In Stock £36.07 | |||
| 25 | CE1312 |  |
Top Panel - Vermiculite | In Stock £21.16 | ||
| 26 | GZ11019 | Top Baffle | In Stock £23.32 | |||
| 27 | GZ10912 | Firebox Bracket Rear Left Hand | In Stock £10.55 | |||
| 28 | GZ8859 | Panel Assembly - Left Hand | This part is not serviceable and cannot be ordered as a spare. | |||
| 29 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||

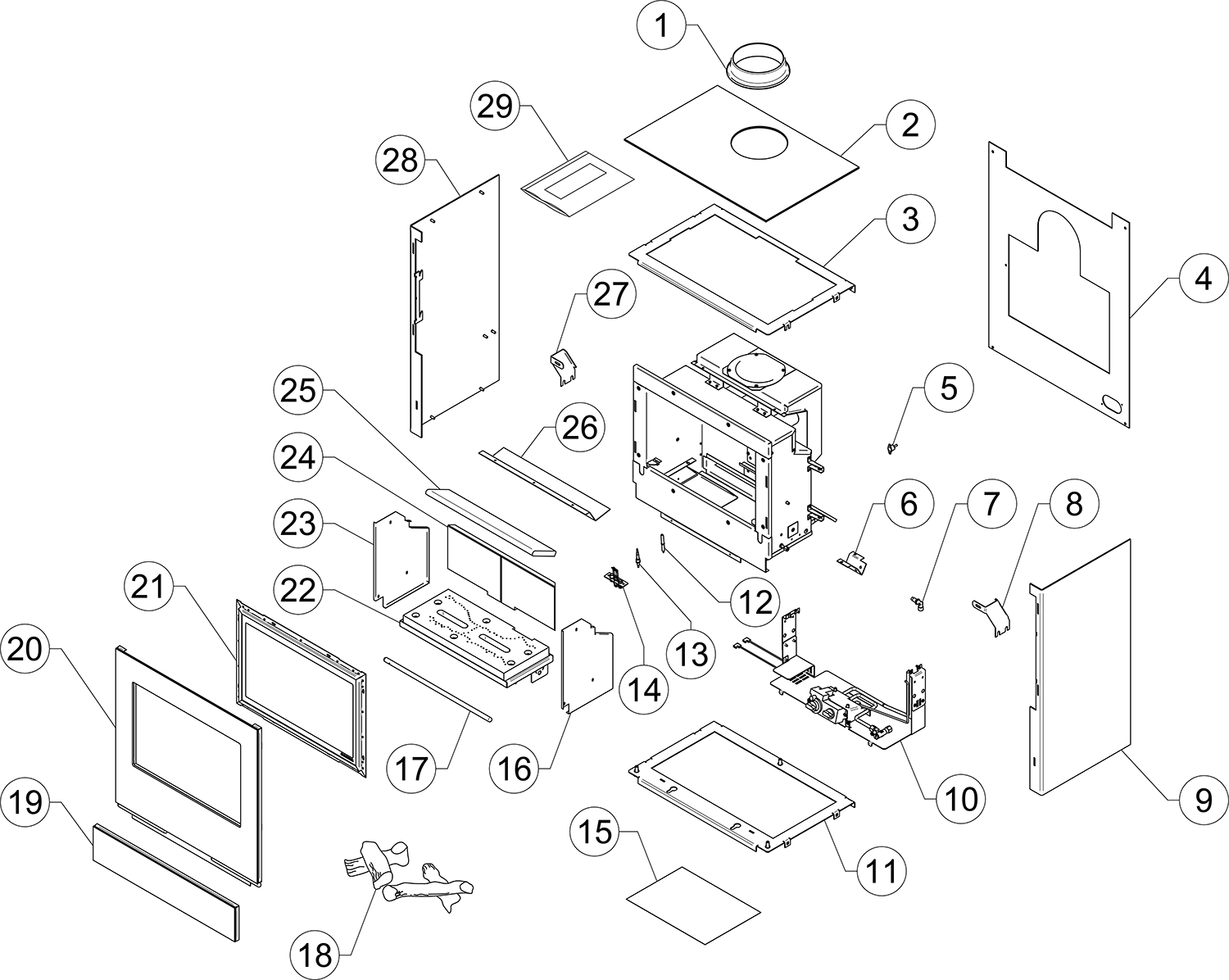

Drawing: 526-539
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ15705 |  |
SIT Interrupter Block Assembly | In Stock £41.34 | ||
| 2 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 3+4 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 4 | EL0238 | Thermostatic Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 4A | EL0238A | Thermostatic Receiver Cable Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 thermostatic receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 5 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 6 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 7 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | GC0088K |  |
Mertik Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 9 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 10 | GC0090 |  |
Ignition Lead | In Stock £26.36 | ||
| 11 | – | Included in Part 1 (GZ15705)
| N/A | |||

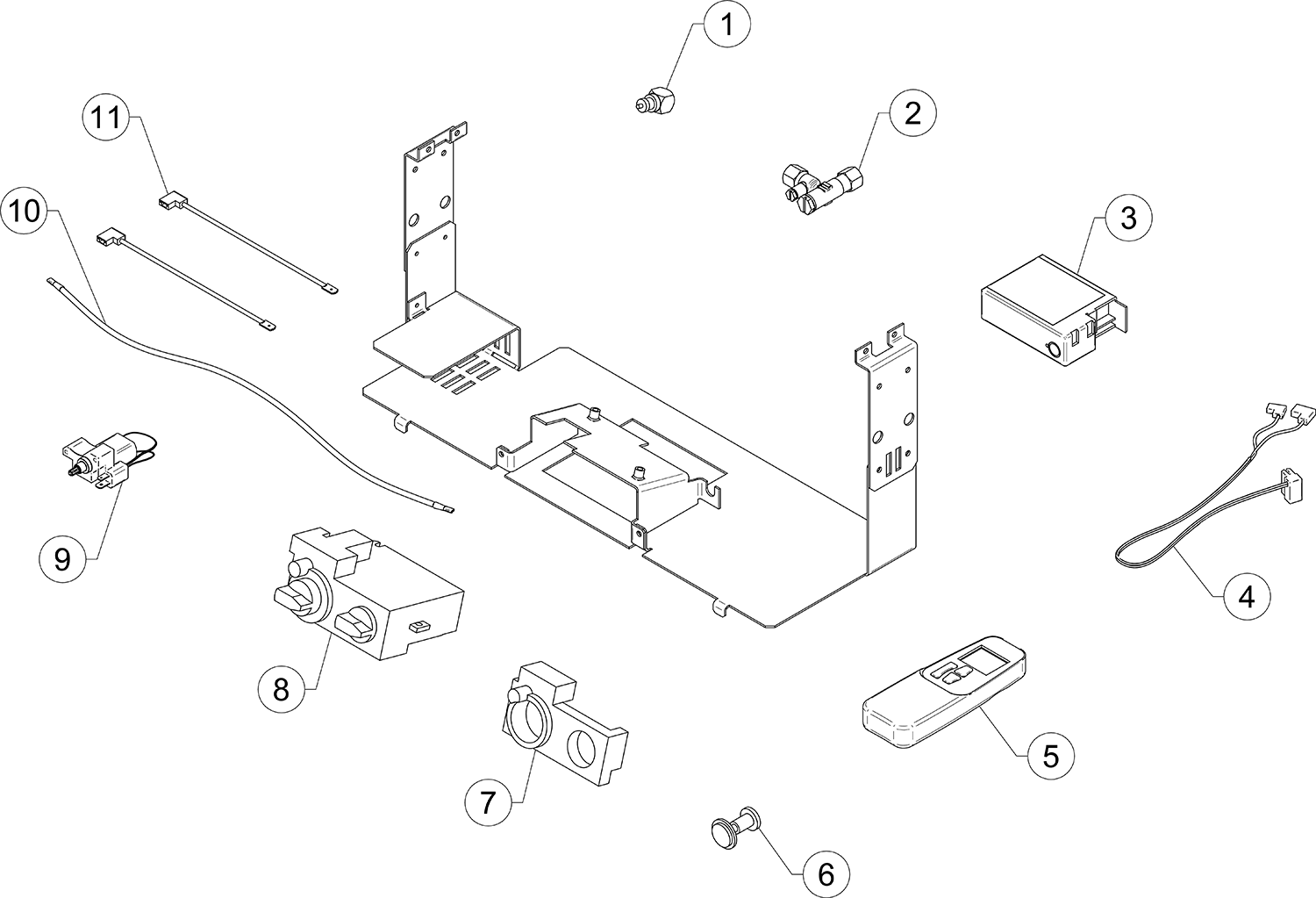

Drawing: 526-539
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
526-539
DIMENSIONS:
535 x 677 x 353mm (w x h x d)
