Logic HE Coals – LPG – Balanced Flue – (101-458) /1
101-458
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ0284 | Explosion Relief Flap Assembly | This part is not serviceable and cannot be ordered as a spare. | |||
| 2 | 999-201 | Horizontal Exit Terminal Guard (required for below 2m) | In Stock £68.26 | |||
| 3 | MEC0269 | Outer Spigot | In Stock £34.14 | |||
| 4 | CE0211 | Outer Flue Gasket | In Stock £4.94 | |||
| 5 | MEC0275 | Inner Spigot | In Stock £25.26 | |||
| 6 | CE0210 | Inner Flue Gasket | In Stock £2.77 | |||
| 7 | GZ10077 | Instructions & Fixing Kit | Available to Order £63.28 | |||
| 8 | PI0070 | Pilot Burner - LPG | In Stock £40.80 | |||
| 9 | GZ8335 | Engine Assembly - LPG Please note - Serial number required when ordering this part.
| Available to Order £569.00 | |||
| 10 | CE0477 | Pilot Gasket | In Stock £1.90 | |||
| 11 | PI0075 | Electrode | In Stock £3.66 | |||
| 12 | PI0077 | Thermocouple | In Stock £24.25 | |||
| 13 | FA0601 | Burner Tray Seal | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | CE0755 | Ceramic Panel Right Hand | In Stock £66.55 | |||
| 15 | CE0758 | Flame Baffle | In Stock £100.18 | |||
| 16 | CE0490 | Front Coal | In Stock £43.57 | |||
| 17 | GZ8352 | Glass Frame Assembly | In Stock £189.96 | |||
| 18 | CE0496 | Coal Set | In Stock £29.41 | |||
| 19 | CE0754 | Ceramic Panel Left Hand | In Stock £66.55 | |||
| 20 | CE0757 | Ceramic Panel Back | Available to Order £55.45 | |||
| 21 | CE0756 | Ceramic Panel Top | In Stock £49.90 | |||
| 22 | IN0056 | Elbow Injector - 104 | In Stock £29.26 | |||
| 23 | GZ8348 | Front Channel | In Stock £16.93 | |||
| 24 | CE0837 | Burner Skin Gasket | In Stock £10.26 | |||
| 25 | 999-105 | Horizontal Flue Terminal (Wall) | In Stock £239.00 | |||
| 26 | FA0600 | Ropeseal | In Stock £74.36 | |||
| 27 | GZ8307 | Box Baffle | In Stock £42.19 | |||
| 28 | GZ6844 | Top Inner Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||
| FA0422 | 100mm D Inner Silicone Extruded Flue Seal | In Stock £6.50 | ||||
| FA0423 | 150mm D Outer Silicone Extruded Flue Seal | In Stock £7.16 | ||||
| FA0600 | Ropeseal | In Stock £74.36 | ||||

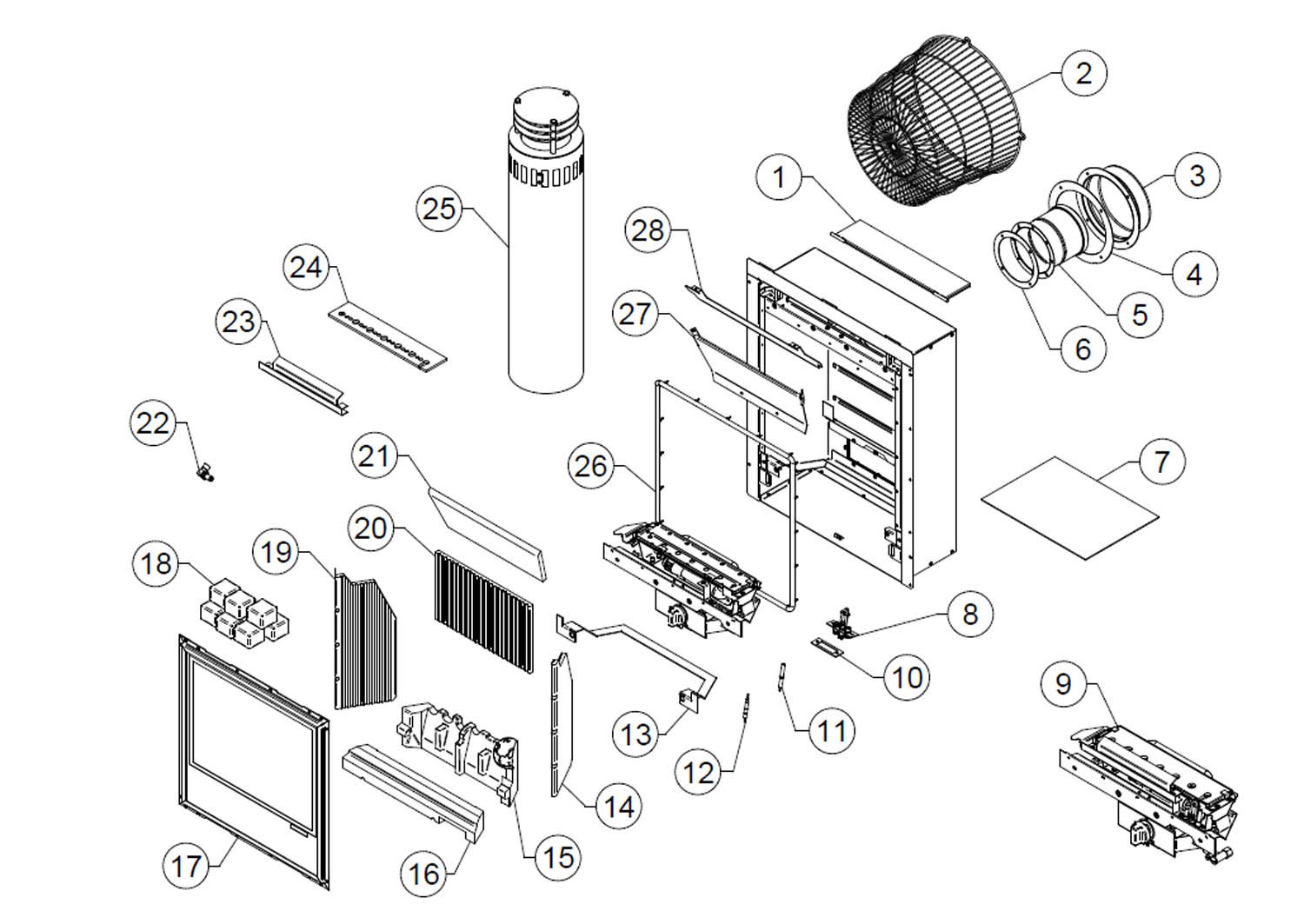

Drawing: 101-458
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0158 | Manual Control Valve LPG - Red Spot Please note - Serial number required when ordering this part.
| In Stock £35.81 | |||
| 2 | GC0058 | Control Knob | In Stock £2.56 |
Drawing: 101-458
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-458
DIMENSIONS:
472 x 592 x 160mm (w x h x d)
