Logic HE Coal Effect – LPG – Conventional Flue Remote (101-614)
101-614
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | ME11519 | Restrictor Plate | In Stock £11.88 | |||
| 2 | FA0354 |  |
Silicone Seal - Inlet | In Stock £2.28 | ||
| 3 | ME3746 | Gasket Plate | In Stock £3.38 | |||
| 4 | n/a | Instruction Manual & Fixing Kit
| This part cannot be ordered via this website. Please contact Gazco for more information. | |||
| 5 | GZ11164 | Engine Assembly - LPG Please note - Serial number required when ordering this part.
| Available to Order £605.00 | |||
| 6 | GZ4680 | Front Channel | In Stock £20.21 | |||
| 7 | GZ4679 | Front Baffle | In Stock £20.93 | |||
| 8 | GZ8372 |  |
Glass Frame Assembly | In Stock £149.86 | ||
| 9 | CE0490 |  |
Front Coal | In Stock £43.57 | ||
| 10 | CE0491 |  |
Flame Baffle | In Stock £65.50 | ||
| 11 | CE1031 |  |
Coal Set | In Stock £28.58 | ||
| 12 | CE0482 |  |
Ceramic Panel Left Hand | In Stock £37.19 | ||
| 13 | CE0497 |  |
Ceramic Panel Back | In Stock £18.76 | ||
| 14 | CE0484 |  |
Ceramic Panel Top | In Stock £29.15 | ||
| 15 | CE0483 |  |
Ceramic Panel Right Hand | In Stock £37.19 | ||
| FA0412 |  |
Upper Pyrotape Seal - Single Piece | In Stock £2.28 | |||
| FA0413 |  |
Side Pyrotape Seal - Single Piece x2 Required
| In Stock £2.05 | |||
| 5037-1 |  |
Thermic Seal Adhesive 50ml Single Bottle | In Stock £6.61 | |||
Drawing: 101-614
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

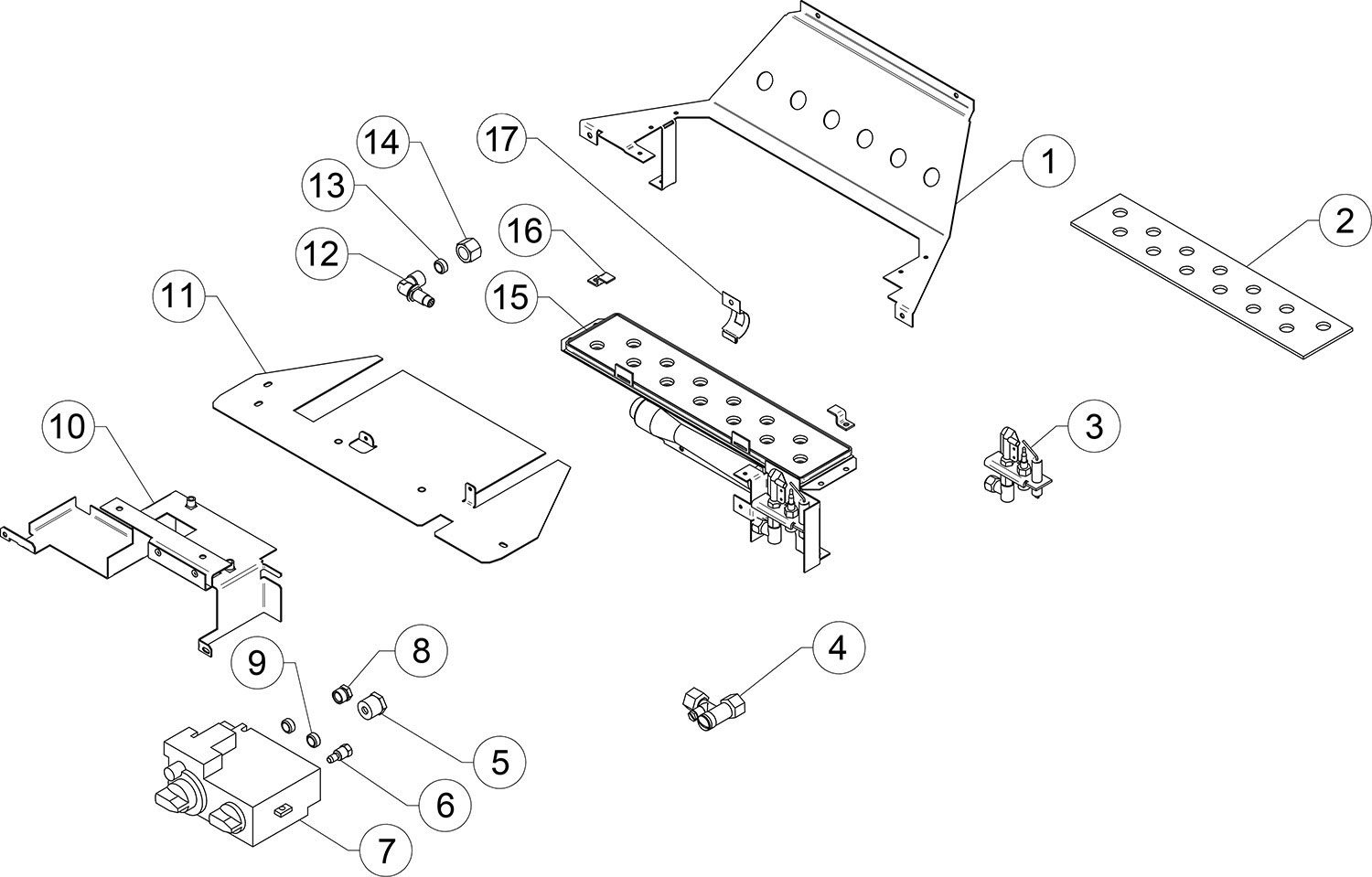

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ4462 | Burner Tray | In Stock £26.64 | |||
| 2 | CE0498 |  |
Burner Cover Gasket | In Stock £8.50 | ||
| 3 | PI0037 |  |
Oxypilot - LPG | Part available for Trade Account Customers only | ||
| 4 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only | ||
| 5 | FA0294 | 3/8 BSP Brass Adaptor | In Stock £7.10 | |||
| 6 | GC0024 | Shear Nut & Olive | In Stock £7.10 | |||
| 7 | GC0088K |  |
Mertek Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 8 | FA0295 | 8mm Brass Tube Inlet | In Stock £4.44 | |||
| 9 | FA0011 |  |
8mm Olive | In Stock £1.50 | ||
| 10 | GZ10754 | Main Control Bracket | In Stock £30.08 | |||
| 11 | GZ8310 | Burner Plate | In Stock £18.12 | |||
| 12 | IN0031 |  |
Elbow Injector - 150 | Part available for Trade Account Customers only | ||
| 13 | FA0011 | |
8mm Olive | In Stock £1.50 | ||
| 14 | FA0029 | 1/4" BSP Nut for 8mm Pipe | In Stock £1.78 | |||
| 15 | GZ8379 | Burner Assembly - LPG | Part available for Trade Account Customers only | |||
| 16 | GZ8090 | Burner Gasket Bracket | In Stock £3.96 | |||
| 17 | GZ3866 | Aeration Cover | In Stock £2.05 | |||
Drawing: 101-614
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1+3 | EL0647 |  |
Metrik STD Receiver and MK2 Cable | In Stock £108.50 | ||
| 2 | EL0239 |  |
Standard Remote Handset | In Stock £95.24 | ||
| 3 | EL0237 |  |
Standard Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver.
This part will soon be obsolete |
In Stock £10.06 | ||
| 3A | EL0237A | Pre 2016 Remote Cable Connection Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 standard receiver.
This part will soon be obsolete |
In Stock £9.16 | |||
| 4+6 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 5 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 6 | EL0238 | Thermostatic Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver.
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 6A | EL0238A | Thermostatic Receiver Cable Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 thermostatic receiver.
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 7 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only | ||
| 8 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 9 | GC0088K | |
Mertek Valve Kit Please note - Serial number required when ordering this part,
| Part available for Trade Account Customers only | ||
| 10 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 11 | EL0241 |  |
Micro Switch & Screw | In Stock £160.31 | ||
| 12 | GC0090 | Ignition Lead | Available to Order £26.36 | |||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-614
DIMENSIONS:
483 x 550 x 190mm (w x h x d)
