Logic HE Log Effect – LPG – Conventional Flue – Slide Control (101-482) /2
101-482

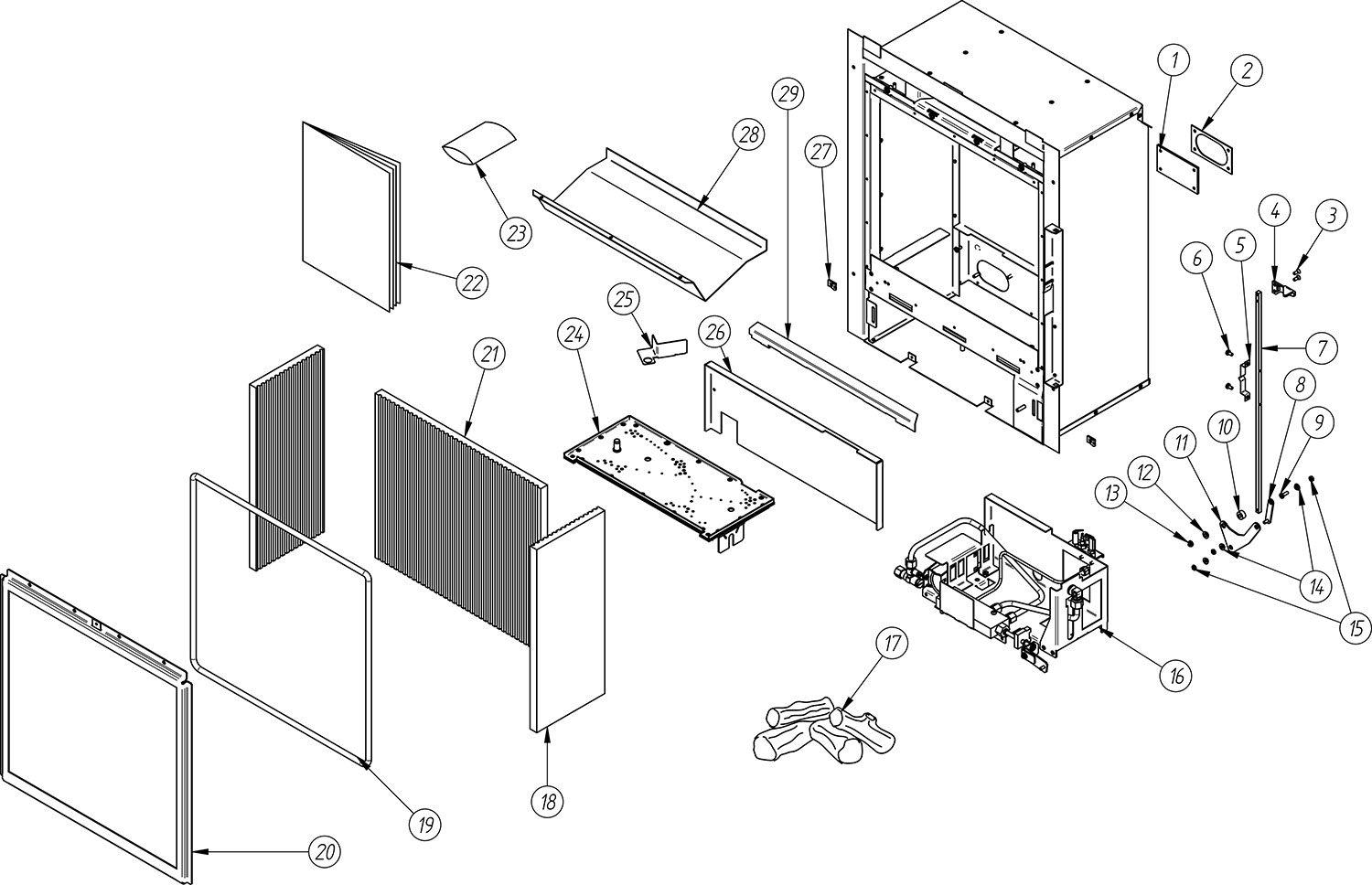

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | FA0354 |  |
Silicone Seal - Inlet | In Stock £2.28 | ||
| 2 | ME3746 | Gasket Plate | In Stock £3.38 | |||
| 3 | FA0330 | M4 x 10 Cross CSK HD Screw | In Stock £0.60 | |||
| 4 | GZ11002 | Control Handle | In Stock £43.20 | |||
| 5 | GZ11061 | Spring Clip | In Stock £20.50 | |||
| 6 | FA0694 | M4 x 6 Pozi Drive Screw | In Stock £0.60 | |||
| 7 | GZ11009 | Push Rod | In Stock £24.42 | |||
| 8 | GZ10052 | Link Plate - Small | In Stock £4.39 | |||
| 9 | D2150-1412 |  |
M4 x 12 Pan Head Screw | In Stock £0.60 | ||
| 10 | FA0691 | Large Steel Spacer | In Stock £4.66 | |||
| 11 | ME11008 | Control Crank Lever | In Stock £7.86 | |||
| 12 | FA0689 | Circular Clearance Spacer - M5 | In Stock £2.60 | |||
| 13 | FA0038 | M5 Locknut | In Stock £0.11 | |||
| 14 | FA0685 |  |
Clearance Spacer | In Stock £3.70 | ||
| 15 | C94323 | M4 Nyloc Nut | In Stock £0.19 | |||
| 17 | CE1755 |  |
Log Set | In Stock £180.92 | ||
| 18 | CE1856 | Black Reed Side Lining Panel | In Stock £91.30 | |||
| 19 | FA0600 |  |
Ropeseal | In Stock £74.36 | ||
| 20 | GZ14017 | Glass and Frame Assembly | In Stock £290.82 | |||
| 21 | CE1857 | Back Panel - Black Reed | In Stock £187.58 | |||
| 22 | PR2757 | Instruction Manual | This part cannot be ordered via this website. Please contact Gazco for more information. | |||
| 23 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| 24 | GZ14540 | Burner Assembly | Part available for Trade Account Customers only | |||
| 25 | GZ14398 | Burner Tray Divider | In Stock £6.85 | |||
| 26 | GZ14399 | Rear Inner Baffle | In Stock £15.05 | |||
| 27 | FA0041 | Spire Clip | In Stock £0.13 | |||
| 28 | GZ14401 | Top Baffle | In Stock £35.94 | |||
| 29 | GZ14012 | Burner Tray Support | In Stock £11.86 | |||
| FA0412 |  |
Upper Pyrotape Seal - Single Piece | In Stock £2.28 | |||
| FA0413 |  |
Side Pyrotape Seal - Single Piece x2 Required
| In Stock £2.05 | |||
| 5037-1 |  |
Thermic Seal Adhesive 50ml Single Bottle | In Stock £6.61 | |||
Drawing: 101-482
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

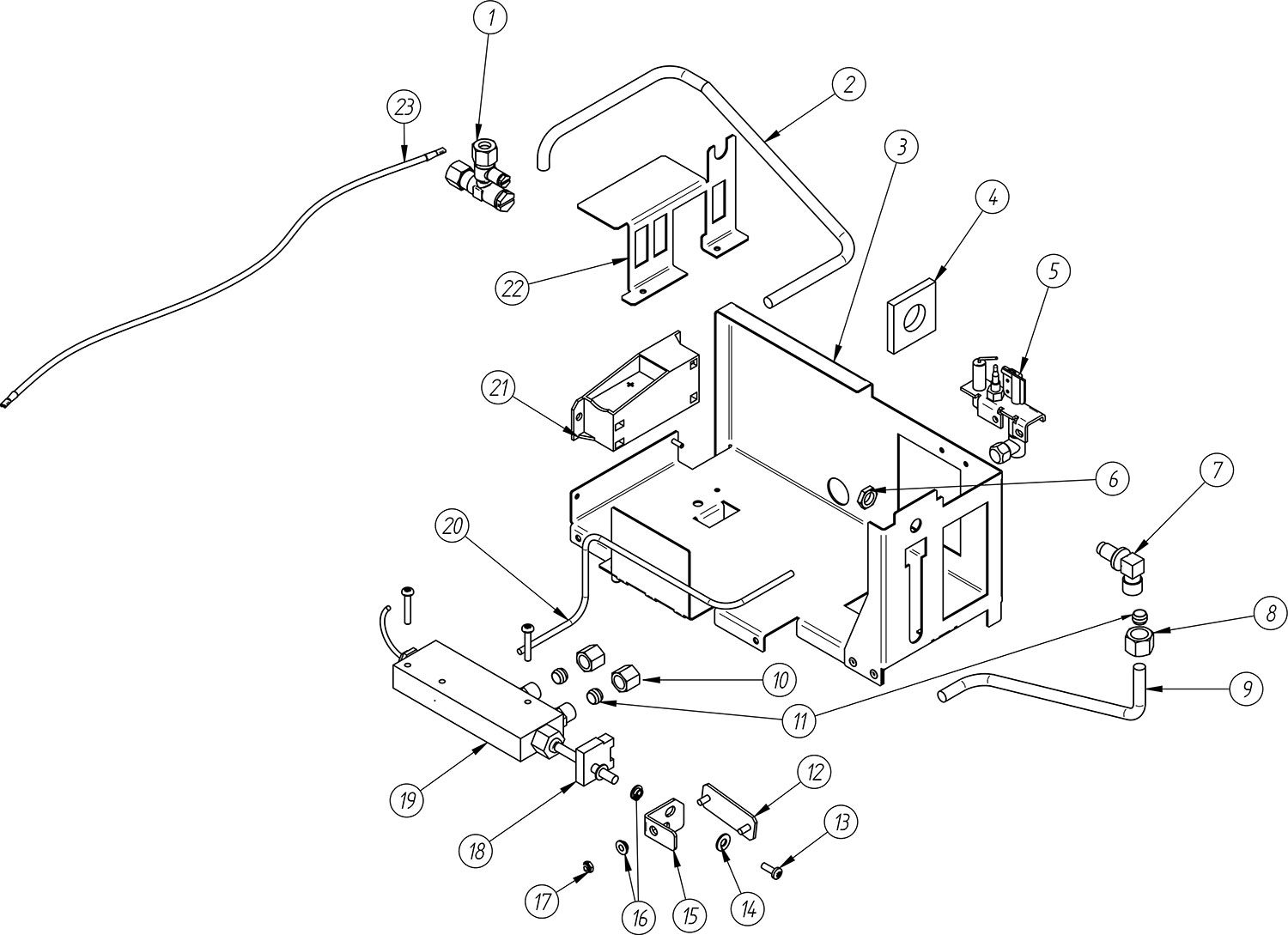

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only | ||
| 2 | GZ15357 | 8mm Front Inlet Pipe | In Stock £16.06 | |||
| 3 | GZ14020 | Control Bracket | In Stock £41.75 | |||
| 4 | FA0171 |  |
Sponge Ventrui Seal | In Stock £1.50 | ||
| 5 | PI0045 |  |
Oxypilot - LPG | Part available for Trade Account Customers only | ||
| 6 | FA0241 | 1/8" BSP Locknut | In Stock £1.50 | |||
| 7 | IN0031 |  |
Elbow Injector - 150 | Part available for Trade Account Customers only | ||
| 8 | FA0029 | 1/4" BSP Nut for 8mm Pipe | In Stock £1.78 | |||
| 9 | GZ14519 | Injector Feed Pipe 8mm | Part available for Trade Account Customers only | |||
| 10 | FA0122 | 8mm Nut | In Stock £2.06 | |||
| 11 | FA0011 |  |
8mm Olive | In Stock £1.50 | ||
| 12 | GZ11577 | Logic HE Range Slide Control Bottom Link | In Stock £4.70 | |||
| 13 | D2150-1412 | |
M4 x 12 Pan Head Screw | In Stock £0.60 | ||
| 14 | FA0705 | M5 Large Washer | In Stock £0.25 | |||
| 15 | GZ11007 | Actuator Bracket | In Stock £3.85 | |||
| 16 | FA0685 | |
Clearance Spacer | In Stock £3.70 | ||
| 17 | C94323 | M4 Nyloc Nut | In Stock £0.19 | |||
| 18 | GC0179 |  |
Logic HE Slide Control Microswitch Kit | In Stock £17.76 | ||
| 19 | GC0168 |  |
Slide Control Valve Please note - Serial number required when ordering this part. Assembly including part 18
| Part available for Trade Account Customers only | ||
| 20 | GZ14521 | Pilot Pipe 4mm | Part available for Trade Account Customers only | |||
| 21 | EL0573 |  |
Ignitor | In Stock £30.80 | ||
| 22 | GZ14406 | Battery Cover | In Stock £5.56 | |||
| 23 | EL0578 |  |
Ignitor Lead | In Stock £5.06 | ||
Drawing: 101-482
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-482
DIMENSIONS:
472 x 550 x 235mm (w x h x d)
