Logic HE Coal Effect – NG – Balanced Flue Fire (101-135) /1
101-135
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ0284 | Explosion Relief Flap Assembly | This part is not serviceable and cannot be ordered as a spare. | |||
| 2 | 999-201 | Horizontal Exit Terminal Guard (required for below 2m) | In Stock £68.26 | |||
| 3 | MEC0269 |  |
Outer Spigot | In Stock £34.14 | ||
| 4 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 5 | MEC0275 |  |
Inner Spigot | In Stock £25.26 | ||
| 6 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 7 | GZ10077 | Instructions & Fixing Kit | Available to Order £63.28 | |||
| 8 | PI0069 |  |
Pilot Burner - Natural Gas | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 9 | GZ8187 | Engine Assembly - Natural Gas Please note - Serial number required when ordering this part.
| Available to Order £585.00 | |||
| 10 | CE0477 |  |
Pilot Gasket | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 11 | PI0075 |  |
Electrode | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 12 | PI0077 |  |
Thermocouple | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 13 | FA0601 | Burner Tray Seal | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | CE0755 | Ceramic Panel Right Hand | In Stock £66.55 | |||
| 15 | CE0758 |  |
Flame Baffle | In Stock £100.18 | ||
| 16 | CE0490 |  |
Front Coal | In Stock £43.57 | ||
| 17 | GZ8352 |  |
Glass Frame Assembly | In Stock £189.96 | ||
| 17a | FA0367 |  |
M5 x 10mm Posi Pan Screw - Single Screw Glass Frame Screws - Sold invividually
| Available to Order £2.96 | ||
| 18 | CE0496 |  |
Coal Set | In Stock £29.41 | ||
| 19 | CE0754 | Ceramic Panel Left Hand | In Stock £66.55 | |||
| 20 | CE0757 | Ceramic Panel Back | In Stock £55.45 | |||
| 21 | CE0756 | Ceramic Panel Top | In Stock £49.90 | |||
| 22 | IN0001 |  |
Elbow Injector - 260 | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 23 | GZ3966 | Aeration Cover | In Stock £7.02 | |||
| 24 | GZ8348 | Front Channel | In Stock £16.93 | |||
| 25 | CE0836 |  |
Burner Skin Gasket | In Stock £10.26 | ||
| 26 | 999-105 | Horizontal Flue Terminal (Wall) | In Stock £239.00 | |||
| 27 | FA0600 |  |
Ropeseal | In Stock £74.36 | ||
| 28 | GZ8307 | Box Baffle | In Stock £42.19 | |||
| 29 | GZ6844 | Top Inner Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||
| FA0600 | |
Ropeseal | In Stock £74.36 | |||

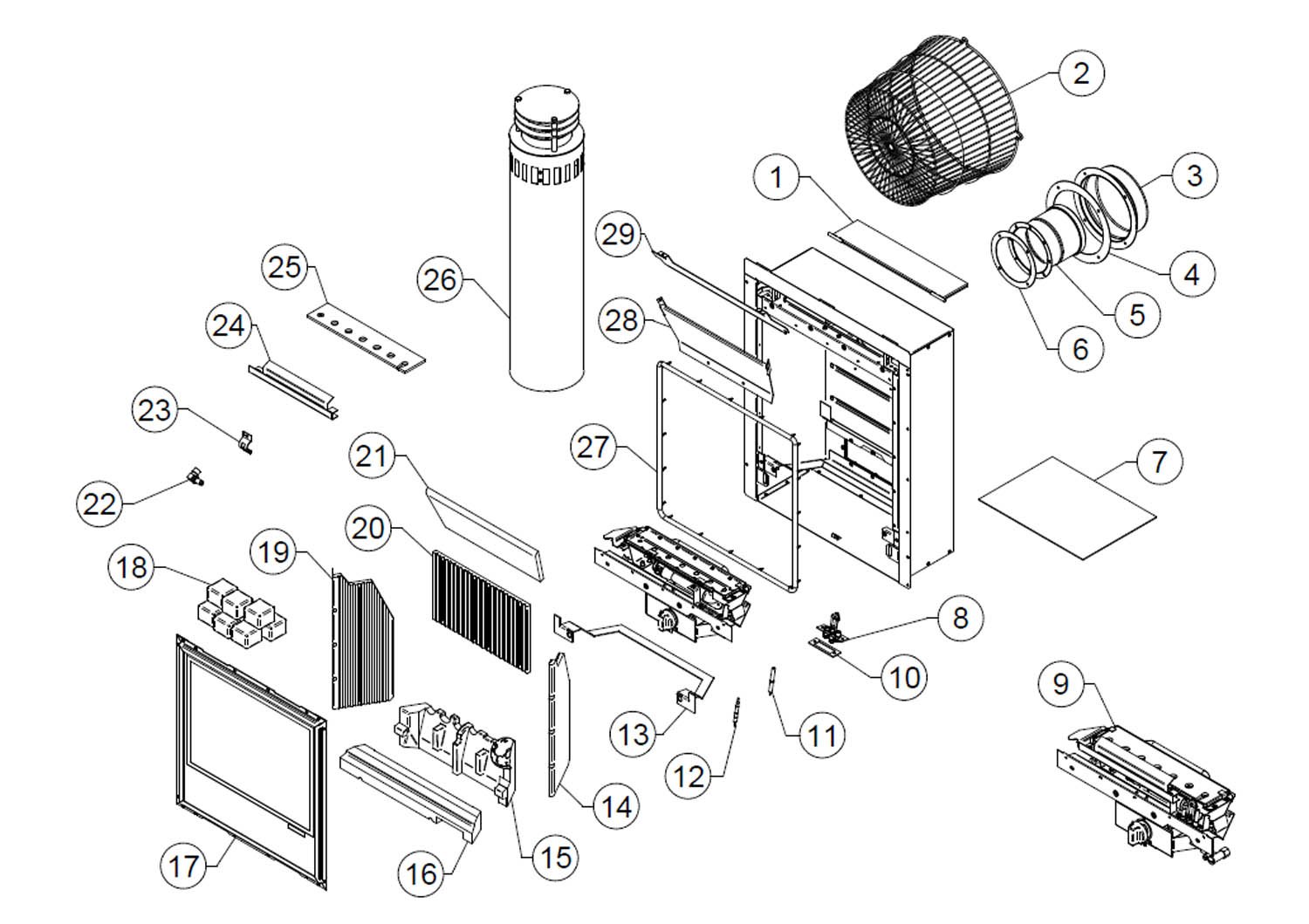

Drawing: 101-135
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0156 |  |
Manual Control Valve Natural Gas - Green Spot Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 2 | GC0058 |  |
Control Knob | In Stock £2.56 | ||
Drawing: 101-135
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-135
DIMENSIONS:
472 x 592 x 160mm (w x h x d)
