Yeoman CL7 Inset Conventional Flue Slide Control Coals – LPG
YM189-555
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | ME11519 |
|
Restrictor Plate | In Stock £11.88 | ||||
| 2 | FA0694 |
|
M4 x 6 Pozi Drive Screw | In Stock £0.60 | ||||
| 3 | GZ11061 |
|
Spring Clip | In Stock £20.50 | ||||
| 4 | FA0330 |
|
M4 x 10 Cross CSK HD Screw | In Stock £0.60 | ||||
| 5 | GZ11002 |
|
Control Handle | In Stock £32.75 | ||||
| 6 | GZ11009 |
|
Push Rod | In Stock £22.00 | ||||
| 7 | FA0354 |
|
Silicone Seal - Inlet | In Stock £2.05 | ||||
| 8 | ME3746 |
|
Gasket Plate | In Stock £3.05 | ||||
| 9 | FA0202 |
|
M4 Hex Nut | In Stock £0.30 | ||||
| 10 | GZ10052 |
|
Link Plate - Small | In Stock £4.39 | ||||
| 11 | ME11008 |
|
Control Crank Lever | In Stock £7.08 | ||||
| 12 | C94323 |
|
M4 Nyloc Nut | In Stock £0.19 | ||||
| 13 | FA0685 |
|
Clearance Spacer | In Stock £3.70 | ||||
| 14 | N/A |
|
This part is not serviceable and cannot be ordered as a spare. | |||||
| 15 | D2150-1412 |
|
M4 x 12 Pan Head Screw | In Stock £0.60 | ||||
| 16 | FA0691 |
|
Large Steel Spacer | In Stock £4.66 | ||||
| 17 | GZ11093 |
|
Engine Assembly - LPG Please note - Serial number required when ordering this part.
| In Stock £609.00 | ||||
| 18 | GZ11093 |
|
Engine Assembly - LPG | In Stock £609.00 | ||||
| 19 | GZ4680 |
|
Front Channel | In Stock £18.20 | ||||
| 20 | GZ4679 |
|
Front Baffle | In Stock £20.93 | ||||
| 21 | GZ8372 |
|
Glass Frame Assembly Dimensions: 426 x 324mm (w x h)
| In Stock £135.00 | ||||
| 22 | CE0490 |
|
Front Coal | In Stock £39.25 | ||||
| 23 | CE0491 |
|
Flame Baffle | In Stock £59.00 | ||||
| 24 | CE1031 |
|
Coal Set | In Stock £25.75 | ||||
| 25 | CE0482 |
|
Ceramic Panel Left Hand | In Stock £33.50 | ||||
| 26 | CE0497 |
|
Ceramic Panel Back | In Stock £16.90 | ||||
| 27 | CE0484 |
|
Ceramic Panel Top | In Stock £26.26 | ||||
| 28 | CE0483 |
|
Ceramic Panel Right Hand | In Stock £33.50 | ||||
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

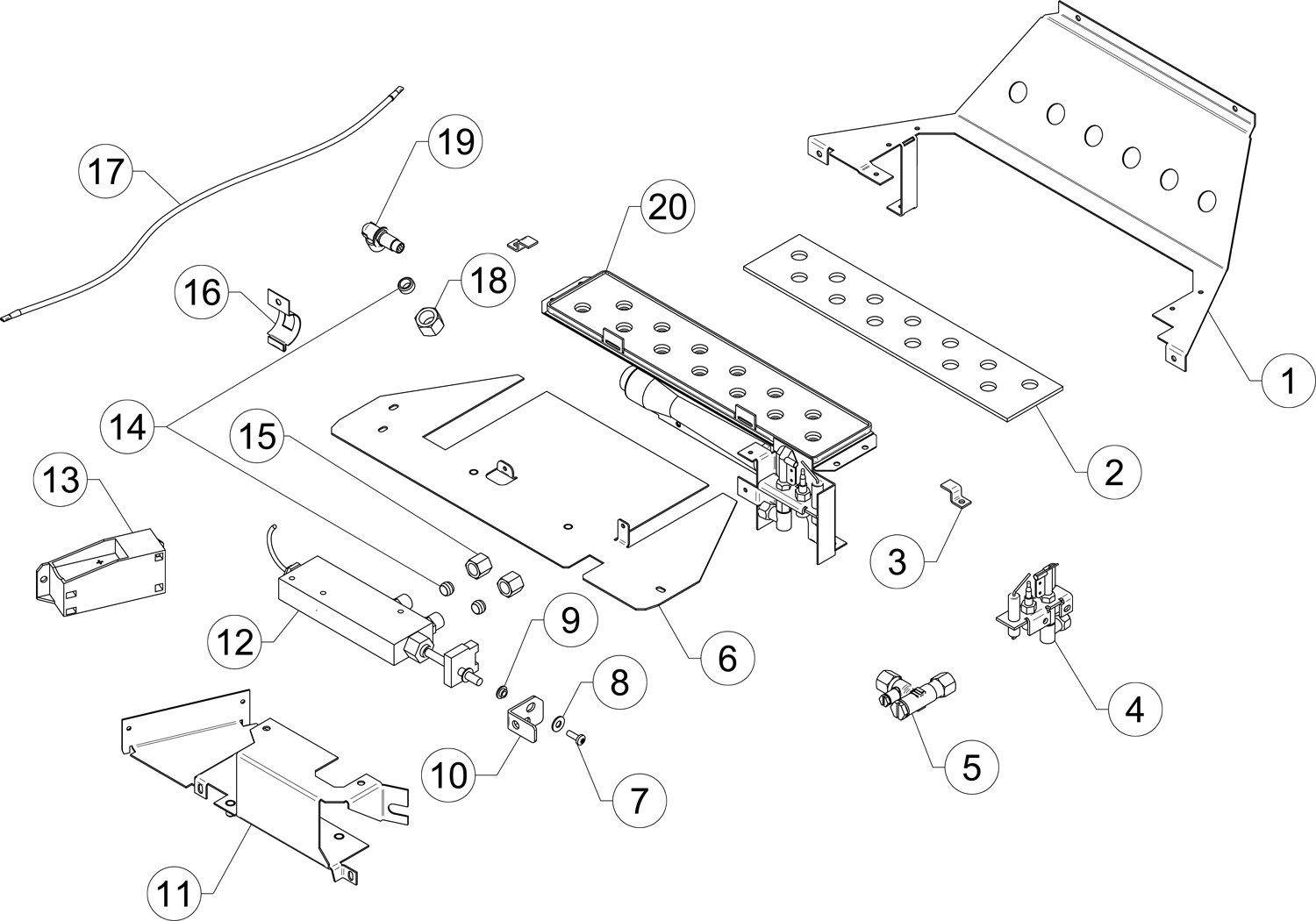

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ4462 |
|
Burner Tray | In Stock £24.00 | ||
| 2 | CE0498 |
|
Burner Cover Gasket | In Stock £7.66 | ||
| 3 | GZ8090 |
|
Burner Gasket Bracket | In Stock £3.96 | ||
| 4 | PI0037 |
|
Oxypilot - LPG | In Stock £34.00 | ||
| 5 | GC0095 |
|
Restrictor Elbow | In Stock £16.66 | ||
| 6 | GZ8310 |
|
Burner Plate | In Stock £18.12 | ||
| 7 | D2150-1412 |
|
M4 x 12 Pan Head Screw | In Stock £0.60 | ||
| 8 | FA0705 |
|
M5 Large Washer | In Stock £0.25 | ||
| 9 | FA0685 |
|
Clearance Spacer | In Stock £3.70 | ||
| 10 | GZ11007 |
|
Actuator Bracket | In Stock £3.85 | ||
| 11 | GZ9521 |
|
Slide Control Bracket Assembly | In Stock £28.50 | ||
| 12 | GC0168 |
|
Slide Control Valve Please note - Serial number required when ordering this part.
| Available to Order £114.00 | ||
| 13 | EL0573 |
|
Ignitor | In Stock £27.76 | ||
| 14 | FA0011 |
|
8mm Olive | In Stock £1.50 | ||
| 15 | FA0122 |
|
8mm Nut | In Stock £2.07 | ||
| 16 | GZ3866 |
|
Aeration Cover | In Stock £1.85 | ||
| 17 | EL0578 |
|
Ignitor Lead | In Stock £4.56 | ||
| 18 | FA0029 |
|
1/4" BSP Nut for 8mm Pipe | In Stock £1.60 | ||
| 19 | IN0031 |
|
Elbow Injector - 150 | In Stock £29.26 | ||
| 20 | GZ8379 |
|
Burner Assembly - LPG | In Stock £205.00 |
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
YM189-555
DIMENSIONS:
513 x 608 x 283mm (w x h x d)
