E-Studio White Stones – LPG – Balanced Flue (112-732) – Discontinued, limited parts available
112-732
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | GZ8827 |
|
Convector Box Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 2 | GZ0284 |
|
Explosion Relief Flap Assembly | This part is not serviceable and cannot be ordered as a spare. | ||||
| 3 | 999-201 |
|
Horizontal Exit Terminal Guard (required for below 2m) | In Stock £64.25 | ||||
| 4 | MEC0269 |
|
Outer Spigot | In Stock £30.76 | ||||
| 5 | CE0211 |
|
Outer Flue Gasket | In Stock £4.45 | ||||
| 6 | MEC0231 |
|
Inner Spigot | In Stock £18.20 | ||||
| 7 | CE0210 |
|
Inner Flue Gasket | In Stock £2.50 | ||||
| 8 | GZ9132 |
|
Instruction Kit | Contact Gazco for more information. | ||||
| 9 | GZ9137 |
|
Sensor Fixing Kit | In Stock £39.91 | ||||
| 10 | GZ8739 |
|
Burner Assembly - LPG | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 11 | GC0095 |
|
Restrictor Elbow | In Stock £16.66 | ||||
| 12 | PI0070 |
|
Pilot Burner - LPG | In Stock £36.76 | ||||
| 13 | CE0477 |
|
Pilot Gasket | In Stock £1.90 | ||||
| 14 | PI0074 |
|
Thermocouple | In Stock £21.76 | ||||
| 15 | PI0075 |
|
Electrode | In Stock £3.30 | ||||
| 16 | GC0163K |
|
Control Valve Kit | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 17 | CE0513 |
|
Burner Tray Seal | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 18 | GZ6931 |
|
Glass Frame Assembly | In Stock £214.91 | ||||
| 19 | GZ6847 |
|
Enamel Panel Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 20 | IN0066 |
|
Elbow Injector - 170R | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 21 | CE1085 |
|
Ceramic Stones | In Stock £36.50 | ||||
| 22 | GZ6839 |
|
Rear Baffle Assembly | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 23 | FA0112 |
|
Rivet | In Stock £0.65 | ||||
| 24 | FA0461 |
|
Ropeseal | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 25 | 999-105 |
|
Horizontal Flue Terminal (Wall) | In Stock £225.00 | ||||
| 26 | GZ6844 |
|
Top Inner Baffle | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 27 | GZ4803 |
|
Convector Box Baffle | This part is now obsolete and can no longer be ordered as a spare. | ||||
| FA0422 |
|
100mm D Inner Silicone Extruded Flue Seal | In Stock £5.86 | |||||
| FA0423 |
|
150mm D Outer Silicone Extruded Flue Seal | In Stock £6.46 | |||||

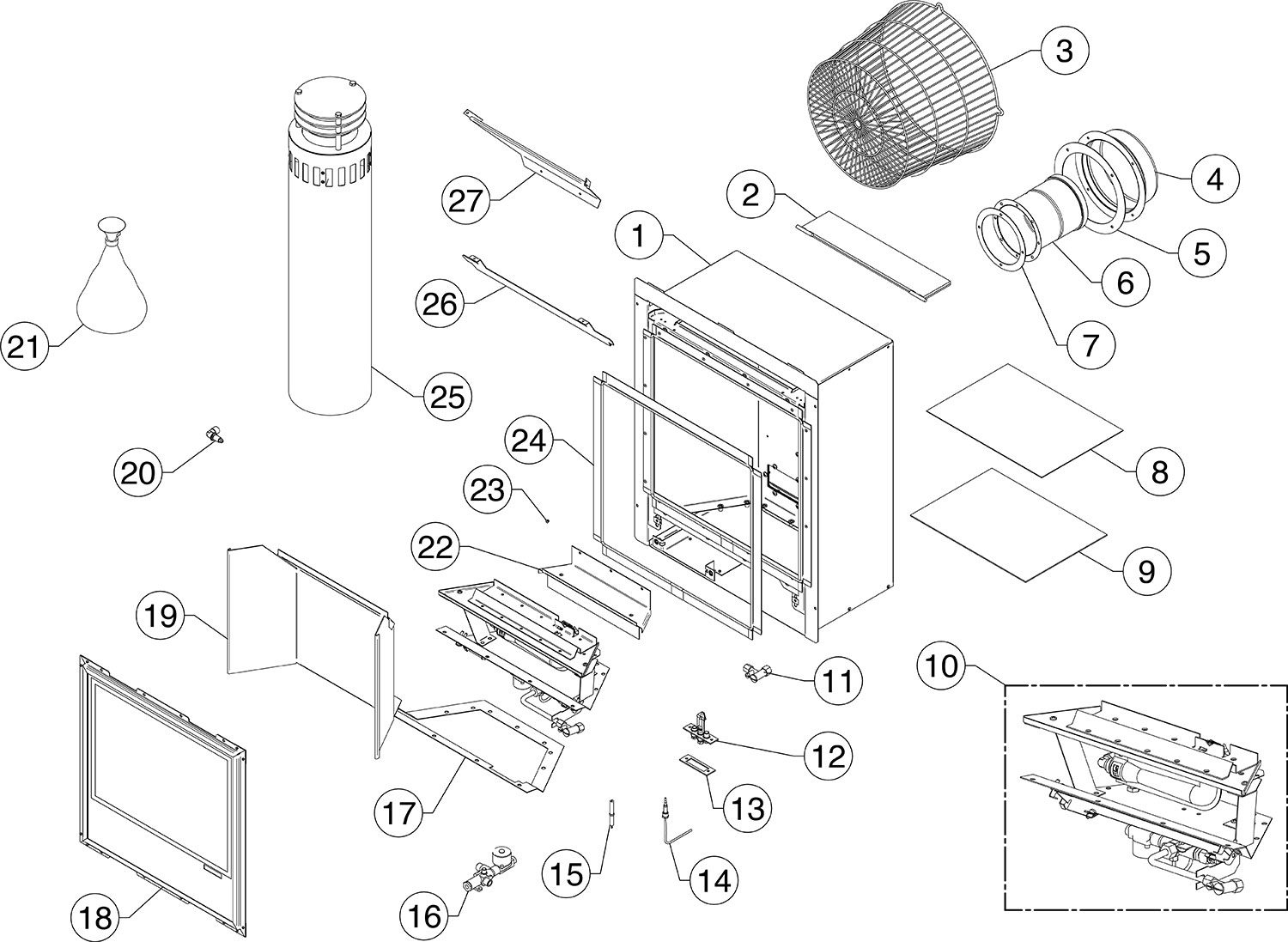

Drawing: 112-732
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | EL0470 |
|
Control Box | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 2 | EL0472 |
|
Handset | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 3 | EL0484 |
|
Battery Holder | In Stock £6.20 | ||||
| 4 | EL0482 |
|
Battery Cable | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 5 | EL0471 |
|
Infra Red Sensor & Cable | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 6 | EL0480 |
|
Ignition Lead | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 7 | EL0476 |
|
Touchpad | This part is now obsolete and can no longer be ordered as a spare. | ||||
| 8 | EL0478 |
|
Touchpad Cable | This part is now obsolete and can no longer be ordered as a spare. | ||||
Drawing: 112-732
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
112-732
DIMENSIONS:
472 x 592 x 232mm (w x h x d)
