Logic HE Coals – NG – Balanced Flue (101-135) /2
101-135
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC0275 |  |
Inner Spigot | In Stock £25.26 | ||
| 2 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 3 | MEC0269 |  |
Outer Spigot | In Stock £34.14 | ||
| 4 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 5 | FA0354 |  |
Silicone Seal - Inlet | In Stock £2.28 | ||
| 6 | ME3746 | Gasket Plate | In Stock £3.38 | |||
| 7 | GZ10077 | Instructions & Fixing Kit | Available to Order £63.28 | |||
| 8 | CE0496 |  |
Coal Set | In Stock £29.41 | ||
| 9 | CE0757 | Ceramic Panel Back | Available to Order £55.45 | |||
| 10 | CE0755 | Ceramic Panel Right Hand | In Stock £66.55 | |||
| 11 | GZ8187 | Engine Assembly - Natural Gas Please note - Serial number required when ordering this part.
| Available to Order £585.00 | |||
| 12 | CE0490 |  |
Front Coal | In Stock £43.57 | ||
| 13a | GZ8352 |  |
Glass Frame Assembly | In Stock £189.96 | ||
| 13b | FA0367 |  |
M5 x 10mm Posi Pan Screw - Single Screw Glass Frame Screw
| Available to Order £2.96 | ||
| 14 | CE0754 | Ceramic Panel Left Hand | In Stock £66.55 | |||
| 15 | CE0758 | Flame Baffle | In Stock £100.18 | |||
| 16 | GZ6844 | Top Inner Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||
| 17 | CE0756 | Ceramic Panel Top | In Stock £49.90 | |||
| 18 | GZ8307 | Box Baffle | In Stock £42.19 | |||
| 19 | 999-105 | Horizontal Flue Terminal (Wall) | In Stock £239.00 | |||
| 20 | 999-201 | Horizontal Exit Terminal Guard (required for below 2m) | In Stock £68.26 | |||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||
| FA0600 |  |
Ropeseal | In Stock £74.36 | |||
Drawing: 101-135
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | CE0836 |  |
Burner Skin Gasket | In Stock £10.26 | ||
| 2 | PI0075 |  |
Electrode | Part available for Trade Account Customers only | ||
| 3 | FA0271 | 8mm Bulkhead Fitting | In Stock £15.37 | |||
| 4 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only | ||
| 5 | GZ8340 | Burner Tray Assembly | In Stock £40.24 | |||
| 6 | GZ8982 | Slide Front Channel Bracket | In Stock £7.08 | |||
| 7 | GZ8382 | Slide Retaining Bracket - Right Hand | In Stock £6.53 | |||
| 8 | GZ8384 | Spring Bracket - Right Hand | In Stock £6.96 | |||
| 9 | FA0269 | Explosion Relief Spring | This part is not serviceable and cannot be ordered as a spare. | |||
| 10 | FA0122 | 8mm Nut | In Stock £2.06 | |||
| 11 | FA0011 |  |
8mm Olive | In Stock £1.50 | ||
| 12 | FA0123 | 4mm Nut | In Stock £1.56 | |||
| 13 | FA0071 | 4mm Olive | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | GC0058 | Control Knob | In Stock £2.56 | |||
| 15 | FA0121 | Locknut | Available to Order £2.92 | |||
| 16 | GZ8158 | Valve Bracket | In Stock £14.39 | |||
| 17 | GC0156 |  |
Manual Control Valve Natural Gas - Green Spot Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 18 | GZ6845 | Explosion Relief Plate | This part is not serviceable and cannot be ordered as a spare. | |||
| 19 | GZ8383 | Slide Spring Bracket - Left hand | In Stock £7.73 | |||
| 20 | GZ8381 | Slide Retaining Bracket - Left Hand | In Stock £6.53 | |||
| 21 | GZ8348 | Front Channel | In Stock £16.93 | |||
| 22 | CE0477 |  |
Pilot Gasket | Part available for Trade Account Customers only | ||
| 23 | PI0069 |  |
Pilot Burner - Natural Gas | Part available for Trade Account Customers only | ||
| 24 | PI0077 |  |
Thermocouple | Part available for Trade Account Customers only | ||
| 25 | IN0001 |  |
Elbow Injector - 260 | Part available for Trade Account Customers only | ||
| 26 | GZ3966 | Aeration Cover | In Stock £7.02 | |||
| 27 | GZ8356 | Burner Assembly - Natural Gas | Part available for Trade Account Customers only | |||

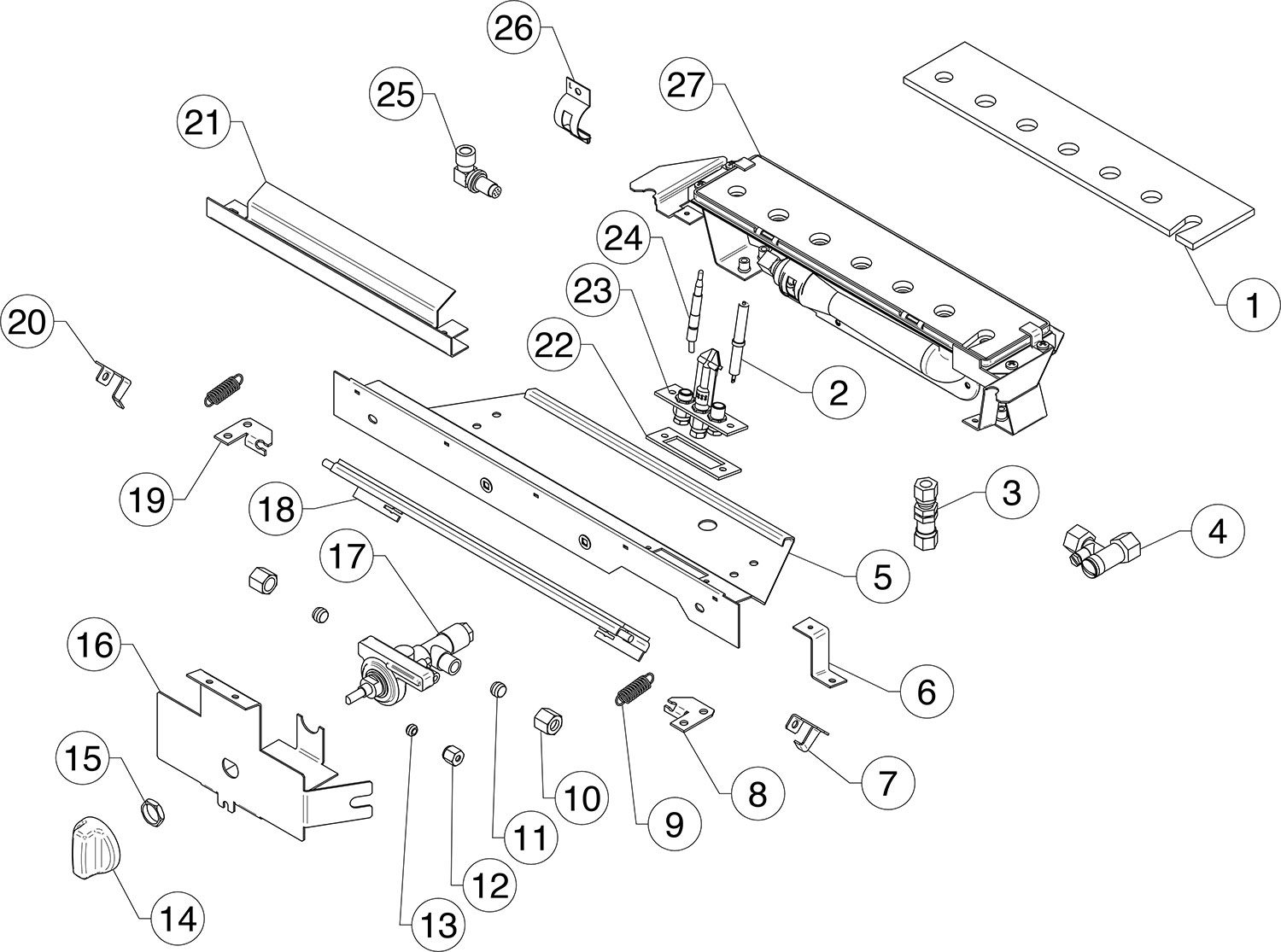

Drawing: 101-135
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-135
DIMENSIONS:
472 x 592 x 160mm (w x h x d)
PDF Documents:
