Studio 2 MK2 Logs/Black Reeded – NG – Conventional Flue (123-068) – Discontinued, limited parts available
123-068
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ6381 | Top Blanking Plate | In Stock £13.28 | |||
| 2 | GZ6887 | Spigot Mounting Plate | In Stock £52.18 | |||
| 3 | GZ6897 | Instruction Kit | This part is now obsolete and can no longer be ordered as a spare. | |||
| 4 | GZ6567 | Fixing Kit | Available to Order £68.82 | |||
| 5 | GZ7035 | Explosion Relief Flap Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 6 | GZ13566 | BURNER ASSEMBLY | Part available for Trade Account Customers only | |||
| 7 | GZ6246 | Foot Levelling Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | GZ6976 | Mounting Bracket | In Stock £23.32 | |||
| 9 | FA0523 | Steel Edge Clip | In Stock £0.88 | |||
| 10 | GZ6361 | Glass Clip Bracket | In Stock £2.80 | |||
| 11 | CE1840 |  |
Studio 2 Mk 2 Log Set | In Stock £379.00 | ||
| 12 | CE1684 | Studio 2 MK2 Log Set | This part is now obsolete and can no longer be ordered as a spare. | |||
| 12 | GZ7360 | Glass Door Assembly | Available to Order £408.94 | |||
| 13 | GZ7131 | Door Assembly | Available to Order £738.16 | |||
| 14 | N/A | N/A See part 15
| This part is not serviceable and cannot be ordered as a spare. | |||
| 15 | 923-744 | Studio 2 Conventional Flue - Black Reeded Lining Set Assembly including parts 14 and 16
| In Stock £329.00 | |||
| 16 | N/A | N/A See part 15
| This part is not serviceable and cannot be ordered as a spare. | |||
| 17 | N/A | N/A See part 18
| This part is not serviceable and cannot be ordered as a spare. | |||
| 18 | CE1827 | Base Lining Set CF Assembly including parts 17 and 19
| In Stock £143.20 | |||
| 19 | N/A | N/A See part 18
| This part is not serviceable and cannot be ordered as a spare. | |||
| 20 | GZ13571N | ENGINE ASSEMBLY Please note - Serial number required when ordering this part.
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 21 | IN0029 | Injector - 530 | Part available for Trade Account Customers only | |||
| 22 | PI0036 |  |
NG Oxypilot Assembly | Part available for Trade Account Customers only | ||
| 23 | PI0075 |  |
Electrode | Part available for Trade Account Customers only | ||
| 24 | GZ2016 | Aeration Plate | In Stock £7.02 | |||
| 25 | GZ6690 |  |
Door Tool | In Stock £30.53 | ||
| 26 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| 27 | 999-620 | Remote System Mains Adaptor | In Stock £42.00 | |||
Drawing: 123-068
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

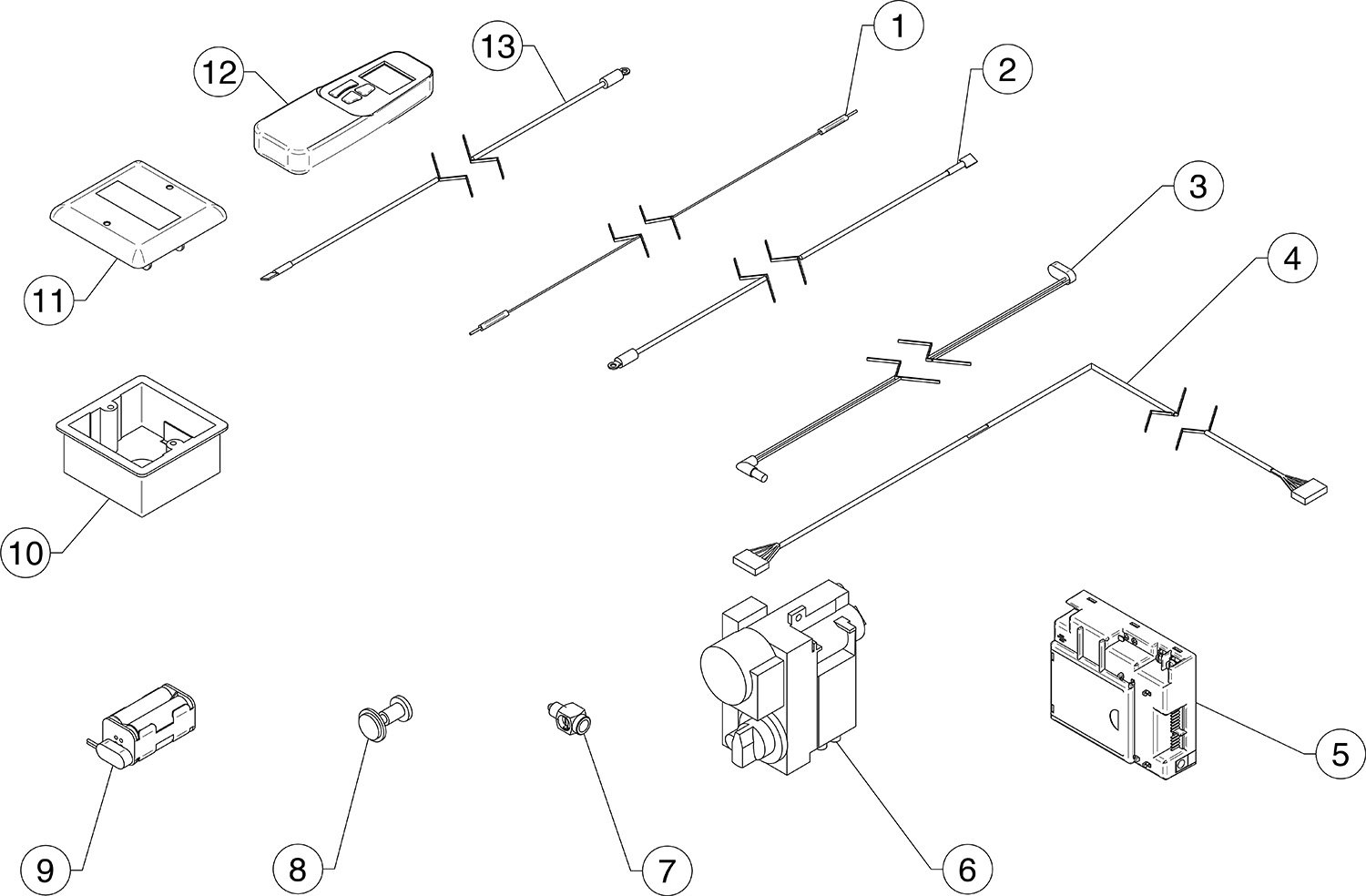

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0125 |  |
Ignition Cable | In Stock £11.35 | ||
| 2 | GC0136 |  |
Thermo Current Switch | In Stock £13.30 | ||
| 3 | GC0138 |  |
3m Battery Cable | In Stock £36.64 | ||
| 4 | GC0133 |  |
Connection Cable - 360mm | In Stock £19.60 | ||
| 5 | EL0589 |  |
Receiver | In Stock £165.00 | ||
| 6 | GC0123K |  |
Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 7 | GC0124 |  |
Interrupter Block | In Stock £22.03 | ||
| 8 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only | ||
| 9 | EL0410 |  |
Battery Holder | In Stock £10.36 | ||
| 10 | EL0409 | Dry Lining Box
This part will soon be obsolete |
In Stock £7.22 | |||
| 11 | EL0591 | Battery Access Cover | In Stock £47.46 | |||
| 12 | EL0571 |  |
Thermostatic Handset | In Stock £101.24 | ||
| 13 | EL0590 |  |
Thermo Current Cable | In Stock £10.15 | ||
Drawing: 123-068
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
123-068
DIMENSIONS:
1029 x 501 x 315mm (w x h x d)
