Riva Vision Small Rear Exit – LPG – Balanced Flue (526-405)
526-405
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ9591 | Glass Panel Assembly - Rear Exit | This part is not serviceable and cannot be ordered as a spare. | |||
| 2 | GZ8689 | Top Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 3 | MEC0231 |  |
Inner Spigot | In Stock £20.21 | ||
| 4 | MEC0232 |  |
Outer Spigot | In Stock £25.26 | ||
| 5 | GZ8687 | Back Panel - Matt Black | This part is now obsolete and can no longer be ordered as a spare. | |||
| 6 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 7 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 8 | PI0051 |  |
Pilot Burner Body | In Stock £15.90 | ||
| 9 | PI0052 |  |
Pilot Gasket | In Stock £2.40 | ||
| 10 | PI0015 |  |
Injector - 19 | In Stock £12.94 | ||
| 11 | PI0013 |  |
Hook Olive | In Stock £1.50 | ||
| 12 | PI0014 |  |
Hook Nut | In Stock £3.28 | ||
| 13 | PI0053 |  |
Electrode | In Stock £9.05 | ||
| 14 | GZ8751 | Side Panel Right Hand - Matt Black | This part is not serviceable and cannot be ordered as a spare. | |||
| 15 | C94225 | M6 Wing Nut | In Stock £0.47 | |||
| 16 | FA0024 | 1/4" Washer | In Stock £0.20 | |||
| 17 | GZ9744 | Fixing Bracket | In Stock £70.16 | |||
| 18 | GZ8715 | Firebox Bracket Back - Left Hand | In Stock £10.55 | |||
| 19 | PI0011 |  |
Thermocouple | In Stock £38.02 | ||
| 20 | IN0071 | Elbow Injector - 90 | In Stock £28.13 | |||
| 21 | GZ8690 | Base Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 22 | PR2029 | Instruction Manual | Click product code to view or download Manual | |||
| 23 | CE0953 | Log Set | In Stock £98.50 | |||
| 24 | CE1005 | Ceramic Panel Right Hand | This part is now obsolete and can no longer be ordered as a spare. | |||
| 25 | CE1006 | Ceramic Panel Back | This part is now obsolete and can no longer be ordered as a spare. | |||
| 26 | GZ9589 | Log Bar | Available to Order £83.26 | |||
| 27 | GZ12049 | Control Cover Assembly | Available to Order £187.58 | |||
| 28 | GZ12046 | Door Assembly | Available to Order £560.54 | |||
| 29 | GZ9701 | Glass Frame Assembly | Available to Order £265.30 | |||
| 30 | GZ9649 | Burner Assembly - LPG | This part is now obsolete and can no longer be ordered as a spare. | |||
| 31 | CE1023 | Ceramic Panel Base | This part is now obsolete and can no longer be ordered as a spare. | |||
| 32 | GZ9637 | Clamp Bracket - Rear Ceramic | This part is now obsolete and can no longer be ordered as a spare. | |||
| 33 | CE1004 | Ceramic Panel Left Hand | This part is now obsolete and can no longer be ordered as a spare. | |||
| 34 | CE1007 | Ceramic Panel Top | This part is now obsolete and can no longer be ordered as a spare. | |||
| 35 | GZ12252P | Engine Assembly - LPG Please note - Serial number required when ordering this part.
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 36 | GZ3270 | Aeration Plate | In Stock £7.02 | |||
| 37 | GZ8716 | Firebox Bracket Left Hand Rear | In Stock £10.55 | |||
| 38 | GZ8750 | Side Panel Left Hand - Matt Black | This part is not serviceable and cannot be ordered as a spare. | |||
| 39 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

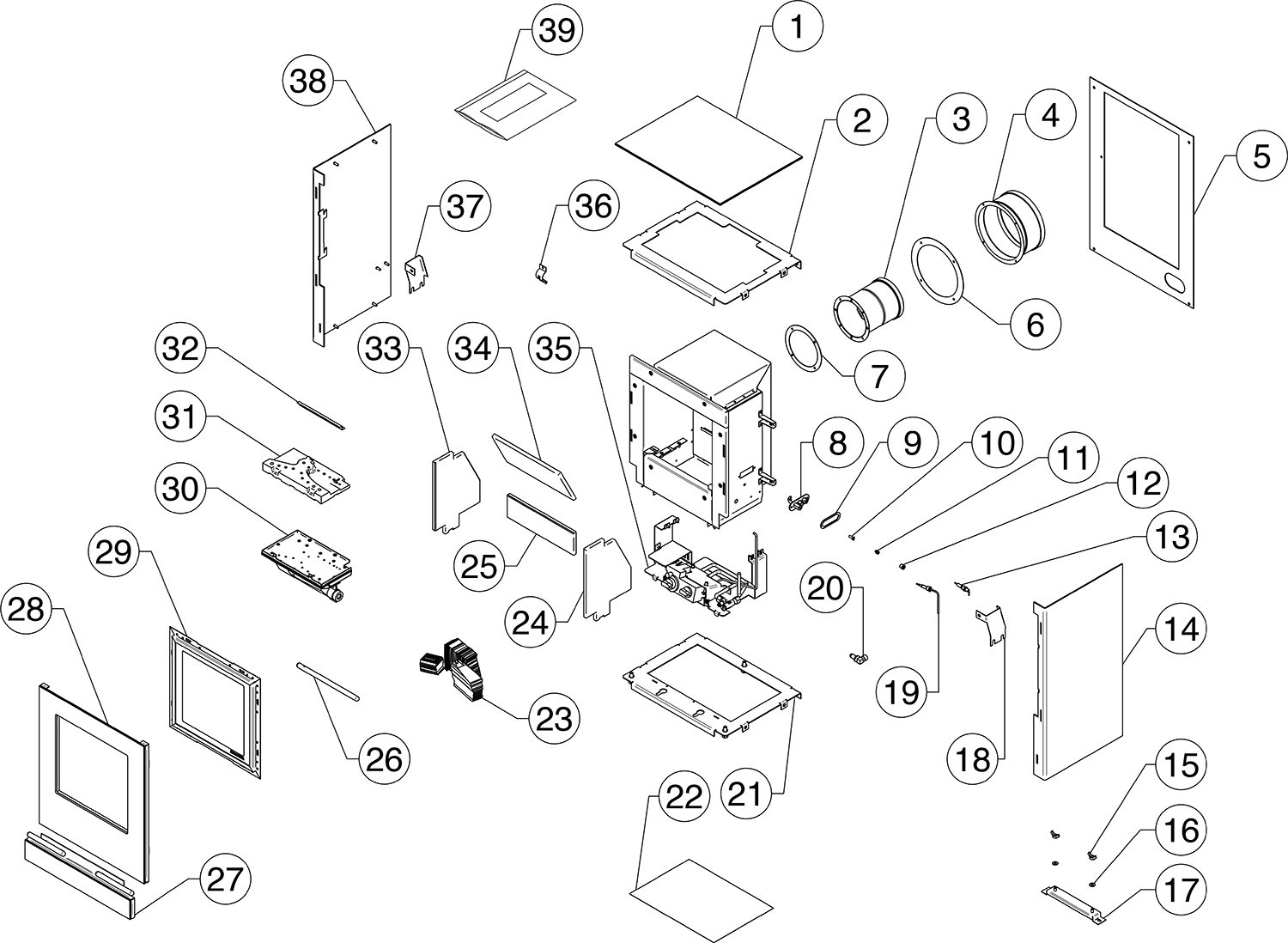

Drawing: 526-405
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only | ||
| 2+3 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 3 | EL0238 | Thermostatic Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 3A | EL0238A | Thermostatic Receiver Cable Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 thermostatic receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 4 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 5 | GC0166 |  |
Mag Unit | In Stock £54.00 | ||
| 6 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 7 | GC0088K |  |
Mertek Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 8 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 9 | GC0090 | Ignition Lead | Available to Order £26.36 | |||

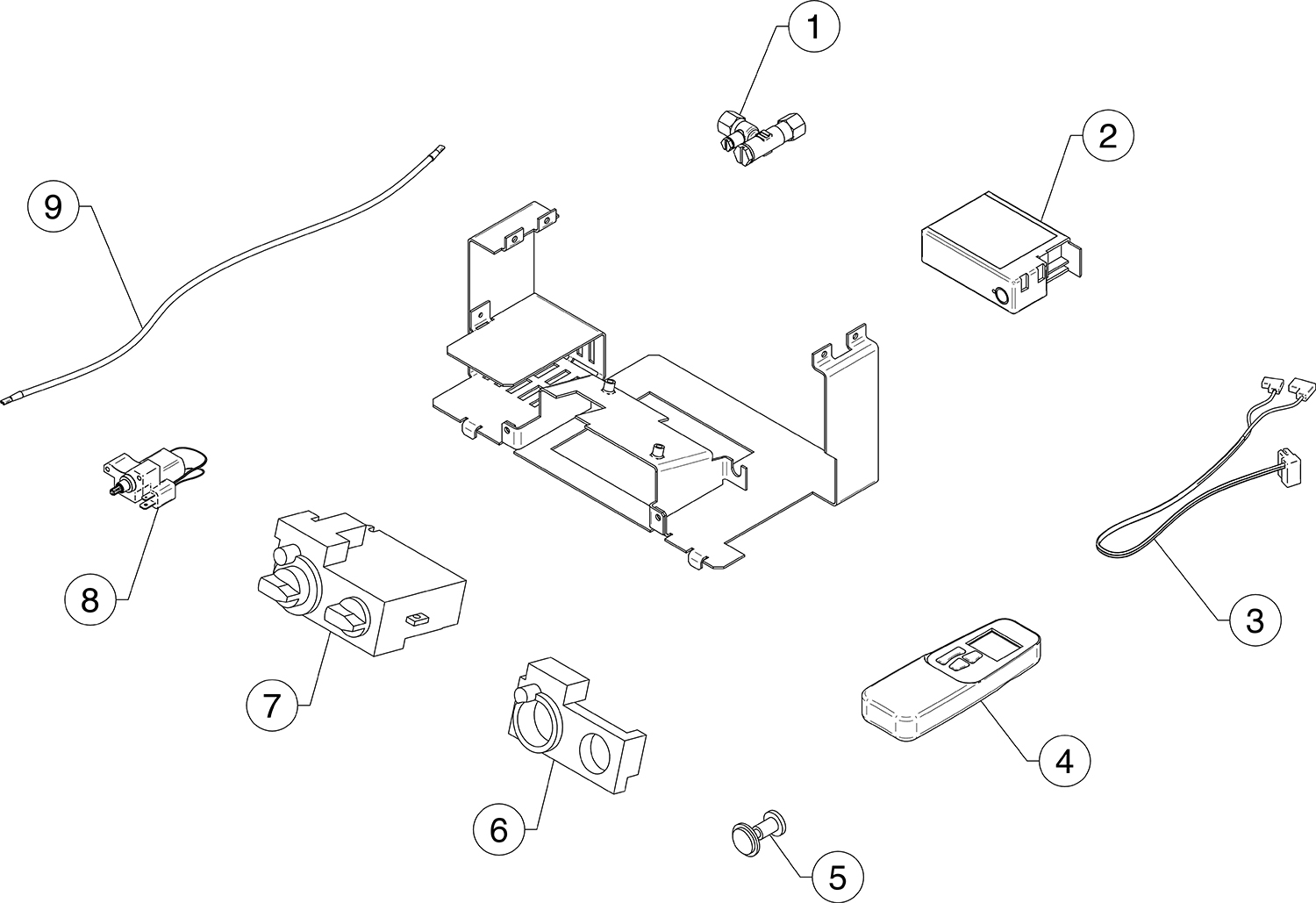

Drawing: 526-405
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
526-405
DIMENSIONS:
370 x 529 x 289mm (w x h x d)
