Sheraton 5 – Balanced Flue – NG (505-215)
505-215
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | GZ13397 |
|
Vogue Firebox Restraint Bracket | In Stock £8.15 | ||||
| 2 | GZ1321 |
|
Outer Flue Blanking Plate | In Stock £17.26 | ||||
| 3 | CE0211 |
|
Outer Flue Gasket | In Stock £4.45 | ||||
| 4 | GZ1320 |
|
Inner Flue Blanking Plate | In Stock £12.20 | ||||
| 5 | CE0210 |
|
Inner Flue Gasket | In Stock £2.50 | ||||
| 6 | IN0064 |
|
Elbow Injector - 063 | In Stock £11.10 | ||||
| 7 | FA0011 |
|
8mm Olive | In Stock £1.50 | ||||
| 8 | FA0029 |
|
1/4" BSP Nut for 8mm Pipe | In Stock £1.60 | ||||
| 9 | FA0171 |
|
Silicon Sponge Venturi Seal | In Stock £1.50 | ||||
| 10 | FA0241 |
|
1/8" BSP Locknut | In Stock £1.50 | ||||
| 11 | PI0056 |
|
Lint Shield | In Stock £5.65 | ||||
| 12 | PI0090 |
|
NG Oxypilot Assembly | In Stock £34.50 | ||||
| 13 | CE2083 |
|
Pilot Bracket Gasket | In Stock £3.25 | ||||
| 14 | GZ16075 |
|
Pilot Bracket Assembly | In Stock £24.76 | ||||
| 16 | GZ15695 |
|
Pilot Bracket | In Stock £5.56 | ||||
| 17 | GZ13225 |
|
Burner Assembly | In Stock £175.00 | ||||
| 18 | GZ11271 |
|
Aeration Cover | In Stock £6.24 | ||||
| 19 | GZ15896 |
|
In Stock £10.55 | |||||
| 20 | N/A |
|
See Control Assembly Tab
| This part is not serviceable and cannot be ordered as a spare. | ||||
| 21 | GZ15749 |
|
In Stock £109.00 | |||||
| 22 | CE1755 |
|
Log Set | In Stock £163.00 | ||||
| 23 | GZ13477 |
|
Front Stone Channel | In Stock £24.76 | ||||
| 24 | ME602112 |
|
Door Handle | In Stock £57.50 | ||||
| 25 | GZ15672 |
|
In Stock £13.40 | |||||
| 26 | CA0864 |
|
In Stock £205.00 | |||||
| 27 | GZ15671 |
|
LH Door Hook | In Stock £12.76 | ||||
| 28 | GZ13410 |
|
Glass Frame Assembly | In Stock £239.00 | ||||
| 29 | FA0725 |
|
Rope Seal Pack | In Stock £61.50 | ||||
| 30 | GZ13209 |
|
Top Baffle | In Stock £62.00 | ||||
| 31 | GZ13210 |
|
Rear Baffle - Vogue | In Stock £19.96 | ||||
| 32 | GZ13417 |
|
Vogue Midi BF Left Hand Glass Lining Assembly | In Stock £109.00 | ||||
| 33 | GZ13418 |
|
Vogue Midi BF Rear Glass Lining Assembly | In Stock £129.00 | ||||
| 34 | GZ13416 |
|
Vogue Midi BF Right Hand Glass Lining Assembly | In Stock £109.00 | ||||
| 36 | N/A |
|
This part is not serviceable and cannot be ordered as a spare. | |||||
| 37 | CA0868 |
|
In Stock £185.00 | |||||
| 38 | GZ8471 |
|
Embaglow | In Stock £16.66 | ||||
| 39 | 999-347 |
|
Balanced Flue Collar - Matt Black | In Stock £37.25 | ||||
| 40 | CA0869 |
|
In Stock £34.75 | |||||
| 41 | MEC0275 |
|
Inner Spigot | In Stock £22.75 | ||||
| 42 | MEC0232 |
|
Outer Spigot | In Stock £22.75 | ||||
| FA0422 |
|
100mm D Inner Silicone Extruded Flue Seal | In Stock £5.86 | |||||
| FA0423 |
|
150mm D Outer Silicone Extruded Flue Seal | In Stock £6.46 | |||||

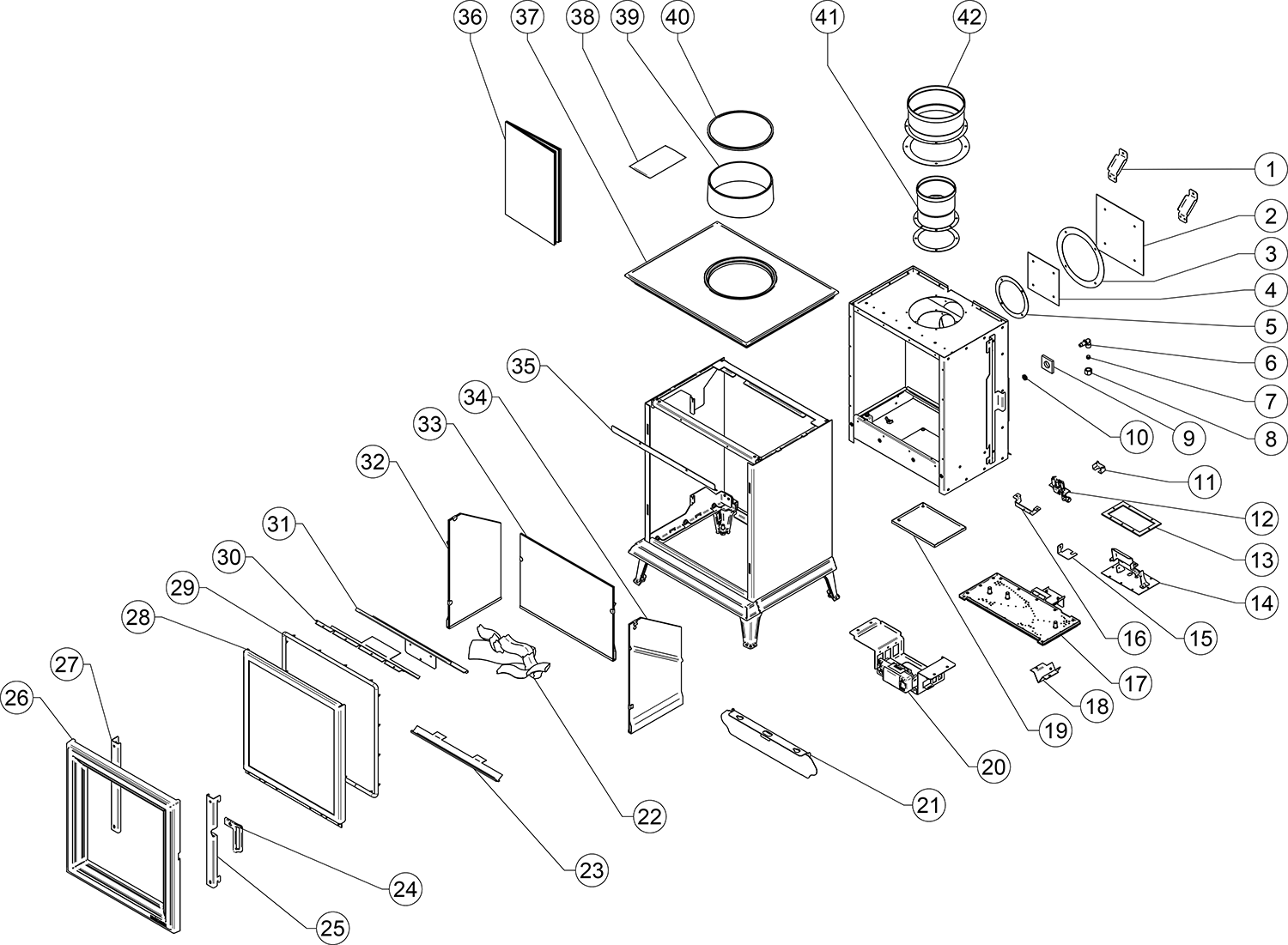

Drawing: 505-215
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0095 |
|
Restrictor Elbow | In Stock £16.66 | ||
| 2 | GZ15748 |
|
Sheraton 5 Inlet Pipe Clamp | In Stock £2.05 | ||
| 3 | FA0782 |
|
4mm Internal Tube Nut | In Stock £2.15 | ||
| 4 | FA0858 |
|
In Stock £3.95 | |||
| 5 | GC0182K |
|
Tesc Valve Kit Please note - Serial number required when ordering this part.
| In Stock £253.00 | ||
| 6 | FA0011 |
|
8mm Olive | In Stock £1.50 | ||
| 7 | FA0781 |
|
4mm Olive | In Stock £1.50 | ||
| 8 | EL0807 |
|
Hand Set | In Stock £153.00 |
Drawing: 505-215
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
505-215
DIMENSIONS:
458 x 651 x 359mm (w x h x d)
