Logic HE Log Effect – LPG – Balanced Flue – Remote Control (101-666)
101-666
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC0269 |  |
Outer Spigot | In Stock £34.14 | ||
| 2 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 3 | MEC0275 |  |
Inner Spigot | In Stock £25.26 | ||
| 4 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 5 | ME3746 | Gasket Plate | In Stock £3.38 | |||
| 6 | FA0354 |  |
Silicone Seal - Inlet | In Stock £2.28 | ||
| 7 | GZ14790 | Logic HE Balanced Flue Rear Baffle Painted | In Stock £26.75 | |||
| 8 | CE1967 | Rear Panel - Black Reed | In Stock £160.94 | |||
| 9 | CE1966 | Right Hand Panel - Black Reed | In Stock £108.50 | |||
| 10 | GZ15412 | Burner Assmebly | Available to Order £169.00 | |||
| 11 | GZ10409 | Aeration Cover | In Stock £5.35 | |||
| 13 | GZ14017 | Glass and Frame Assembly | In Stock £290.82 | |||
| 14 | CE1965 | Left Hand Panel - Black Reed | In Stock £108.50 | |||
| 15 | GZ14789 | Top Baffle | In Stock £32.75 | |||
| 16 | N/A | N/A | This part is not serviceable and cannot be ordered as a spare. | |||
| 17 | PR2756 | Instruction Manual | Click product code to view or download Manual | |||
| 18 | CE1755 |  |
Log Set | In Stock £180.92 | ||
| 19 | N/A | N/A | This part is not serviceable and cannot be ordered as a spare. | |||
| 20 | FA0041 | Spire Clip | In Stock £0.13 | |||
| 21 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||
| FA0600 |  |
Ropeseal | In Stock £74.36 | |||

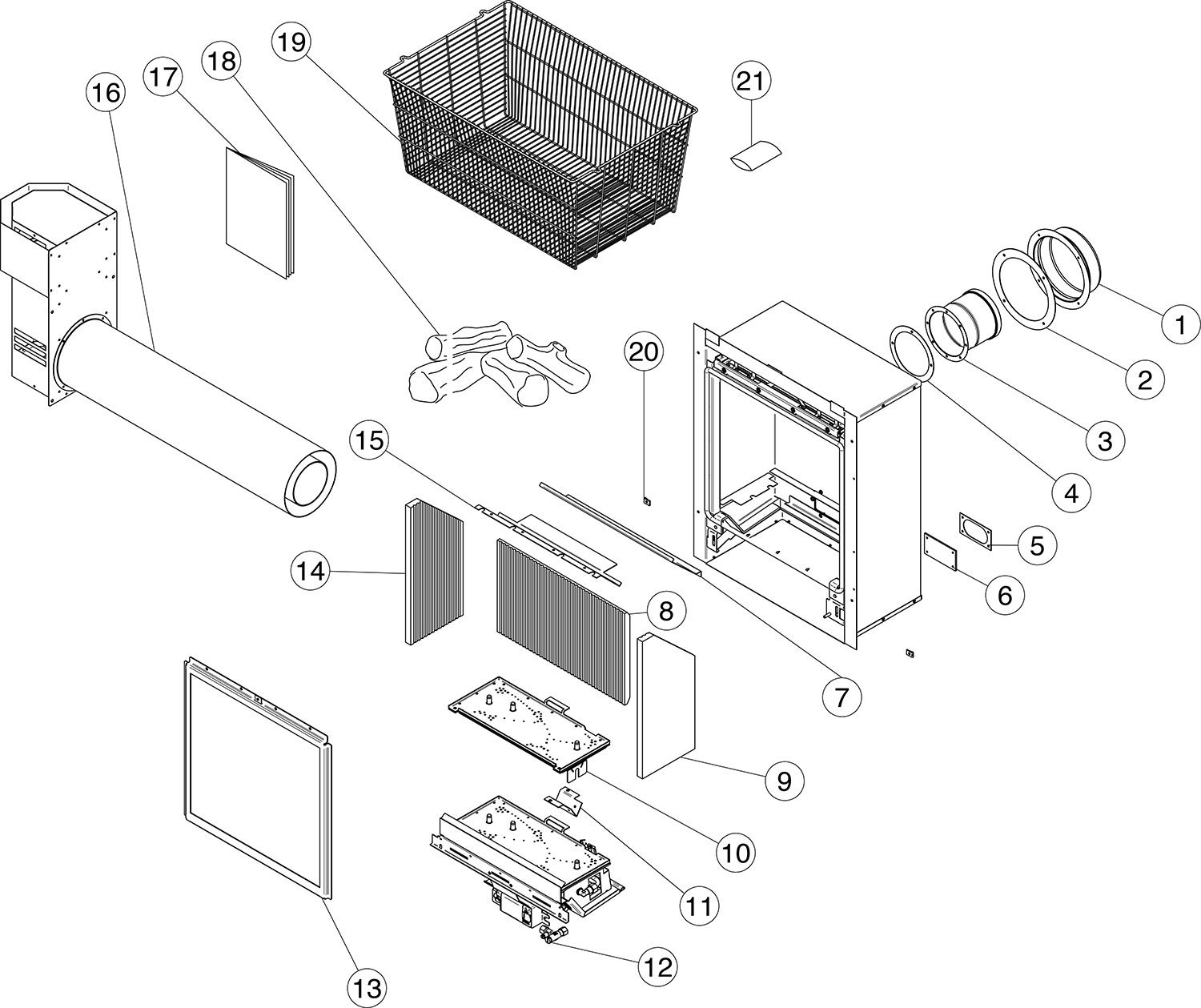

Drawing: 101-666
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | PI0092 |  |
Oxypilot LPG | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 2 | PI0056 |  |
Lint Shield | In Stock £6.28 | ||
| 3 | FA0271 | 8mm Bulkhead Fitting | In Stock £15.37 | |||
| 4 | FA0270 | 4mm Bulkhead Fitting | In Stock £12.43 | |||
| 5 | GC0024 | Shear Nut & Olive | In Stock £7.10 | |||
| 6 | GZ2020 | Large BF Cassette Thermocouple Plate | Part available for Trade Account Customers only — Find your nearest retailer | |||
| 7 | FA0029 | 1/4" BSP Nut for 8mm Pipe | In Stock £1.78 | |||
| 8 | FA0011 |  |
8mm Olive | In Stock £1.50 | ||
| 9 | IN0056 | Elbow Injector - 104 | Part available for Trade Account Customers only — Find your nearest retailer | |||
| 10 | FA0241 |  |
1/8" BSP Locknut | In Stock £1.50 | ||
| 11 | FA0171 |  |
Sponge Ventrui Seal | In Stock £1.50 | ||
| 12 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 13 | FA0782 | 4mm Internal Tube Nut | In Stock £2.39 | |||
| 14 | FA0781 | 4mm Olive | In Stock £1.50 | |||
| 15 | GC0182K |  |
Tesc Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 16 | FA0780 | 12mm Nut | This part is now obsolete and can no longer be ordered as a spare. | |||
| 17 | EL0807 |  |
Remote Handset | In Stock £169.84 | ||
| FA0422 | |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 | |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

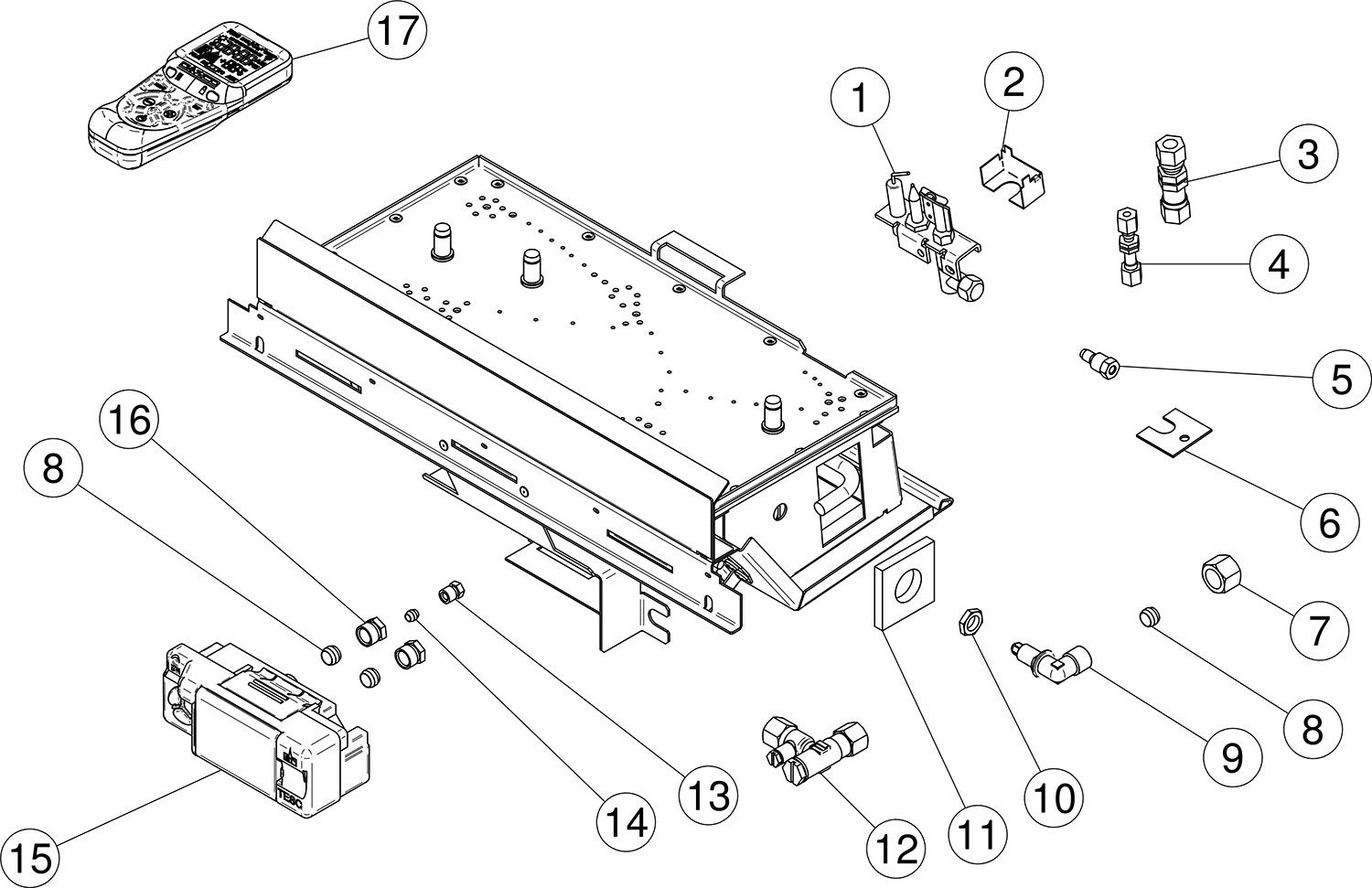

Drawing: 101-666
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
101-666
DIMENSIONS:
472 x 550 x 235mm (w x h x d)
