Reflex 75T 2 Sided – Left/Right Facing Glass – Balanced Flue – NG – Discontinued, limited parts available
191-010 191-027
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | CE1731 | Reflex 75T Ceramic Log Set | In Stock £316.36 | |||||
| 2 | GZ15353 | 1st Burner Can - Left Hand | In Stock £155.29 | |||||
| 3 | GZ15354 | 2nd Burner Can - Centre | In Stock £154.28 | |||||
| 4 | GZ15355 | 3rd Burner Can - Right Hand | In Stock £154.28 | |||||
| 5 | GZ15347 | Burner Tray Assembly | In Stock £294.14 | |||||
| 6 | GZ14950 | Burner Infill | In Stock £10.90 | |||||
| 7 | CE1738 | Injector Seal | In Stock £9.35 | |||||
| 8 | GZ15352N | Engine Assembly Please note - Serial number required when ordering this part.
| In Stock £3,915.00 | |||||
| 9 | GZ15486 | Module Cover | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 10 | 991-202 | Reflex 75T 3-sided Balanced Flue Black Glass Lining Set | In Stock £1,025.00 | |||||
| 10 | 991-174 | Reflex 75T 3-sided Balanced Flue Ledgestone Lining Set | In Stock £599.00 | |||||
| 10 | 991-166 | Reflex 75T 3-sided Balanced Flue Brick Effect Lining Set | In Stock £599.00 | |||||
| 11 | GZ15293 | Liner Retaining Bracket (Lower) | In Stock £2.80 | |||||
| 12 | FA0758 | Rope Seal | In Stock £97.00 | |||||
| 13 | CE1915 | Front Glass | In Stock £707.06 | |||||
| 14 | GZ15061 | Cam Lock Bracket | In Stock £7.85 | |||||
| 15 | GZ15611 | Front Glass Retainer - Lower | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 16 | GZ15059 | Base Trim Cover | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 17 | CE1737 | Reflex Amber Glass - 2.7Kg Bag | In Stock £77.70 | |||||
| 18 | EL0673 | UK Mains Cable - 2m | In Stock £39.68 | |||||
| 19 | EL0051 | Earth Wire Assembly | In Stock £3.35 | |||||
| 20 | GZ15428 | Hand Tool | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 21 | GZ15626 | Installation Kit | Available to Order £149.86 | |||||
| 22 | GZ14962 | Side Trim Cover | In Stock £60.50 | |||||
| 23 | GZ15609 | Rear Glass Retainer | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 24 | CE1916 | Side Glass | In Stock £238.66 | |||||
| 25 | FA0771 | Spring Clip | In Stock £1.50 | |||||
| 26 | GZ15608 | Side Glass Retainer | Available to Order £5.65 | |||||
| 27 | GZ15057 | Corner Stand Off - 1st Position
This part will soon be obsolete |
In Stock £6.30 | |||||
| 28 | GZ15127 | Corner Stand Off - 2nd Position
This part will soon be obsolete |
In Stock £13.10 | |||||
| 29 | GZ15058 | Corner Cover Infill Trim | In Stock £58.25 | |||||
| 30 | FA0768 | Side Infill Rope Seal | In Stock £24.50 | |||||
| 31 | GZ15390 | Side/Corner Infill Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 32 | GZ15349 | Black Glass Side Panel Assembly | Available to Order £319.00 | |||||
| 33 | GZ15214 | SIDE LINING SUPPORT | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 34 | GZ15496 | Side Glass Retainer | In Stock £3.35 | |||||
| 35 | GZ15294 | Upper Retaining Bracket | In Stock £3.35 | |||||
| 36 | GZ14951 | Inner Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||||
| 37 | GZ15610 | Front Glass Retainer - Upper | This part is now obsolete and can no longer be ordered as a spare. | |||||
| FA0422 | 100mm D Inner Silicone Extruded Flue Seal | In Stock £6.50 | ||||||
| FA0423 | 150mm D Outer Silicone Extruded Flue Seal | Available to Order £7.16 | ||||||
Drawing: 191-010 191-027
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

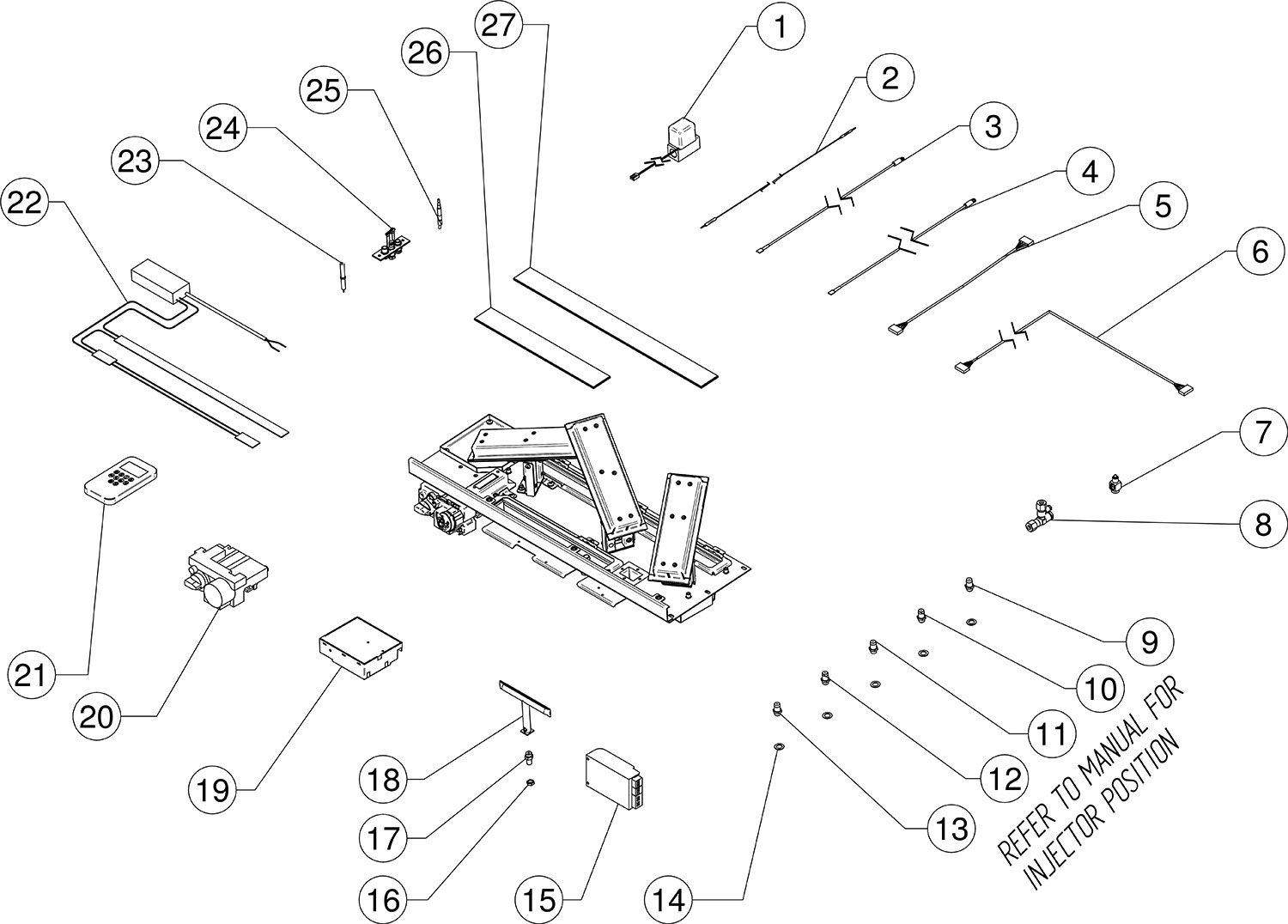

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | EL0563 | Solenoid Valve | In Stock £149.00 | |||
| 2 | GC0125 | Ignition Cable | In Stock £11.35 | |||
| 3 | GC0126 | Thermo Current Cable | In Stock £9.70 | |||
| 4 | EL0590 | Thermo Current Cable | In Stock £10.15 | |||
| 5 | EL0566 | Receiver Cable | In Stock £27.50 | |||
| 6 | GC0133 | Connection Cable - 360mm | In Stock £19.60 | |||
| 7 | GC0124 | Interrupter Block | In Stock £22.03 | |||
| 8 | GC0095 | Restrictor Elbow | In Stock £16.66 | |||
| 9 | IN0081 | Left Rear Injector | In Stock £8.71 | |||
| 10 | IN0087 | Centre Rear Injector LPG | In Stock £8.71 | |||
| 11 | IN0097 | Straight Injector - S128 | In Stock £8.71 | |||
| 12 | IN0085 | Centre Front & Right Front Injector | In Stock £8.71 | |||
| 13 | IN0084 | Straight Injector - S102 | In Stock £8.71 | |||
| 14 | FA0735 | 1/8BSP Fibre Washer | In Stock £2.06 | |||
| 15 | EL0672 | Reflex Power Module | In Stock £236.44 | |||
| 16 | FA0740 | M8 x 1 Fine Thread Brass Locknut | In Stock £1.20 | |||
| 17 | IN0092 | Cross-Lighting Injector | In Stock £13.55 | |||
| 18 | GC0180 | In Stock £198.70 | ||||
| 19 | EL0697 | Reflex Receiver | In Stock £307.46 | |||
| 20 | GC0123K | Valve Kit Please note - Serial number required when ordering this part.
| In Stock £256.42 | |||
| 21 | EL0655 | Reflex Remote Handset | In Stock £247.43 | |||
| 22 | EL0671 | In Stock £214.22 | ||||
| 23 | PI0075 | Electrode | In Stock £3.66 | |||
| 24 | PI0069 | Pilot Burner - Natural Gas | In Stock £42.73 | |||
| 25 | PI0074 | Thermocouple | In Stock £21.76 | |||
| 26 | CE1786 | In Stock £48.29 | ||||
| 27 | CE1855 | In Stock £24.97 |
Drawing: 191-010 191-027
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
191-010 191-027
DIMENSIONS:
900 x 1105 x 429mm (w x h x d)
