Riva2 1050 Logs Effect – LPG – Balanced Flue – Dual Burner – Discontinued, limited parts available
134-493 134-544
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC0231 | Inner Spigot | In Stock £20.21 | |||
| 2 | CE0210 | Inner Flue Gasket | In Stock £2.77 | |||
| 3 | MEC0232 | Outer Spigot | In Stock £25.26 | |||
| 4 | CE0211 | Outer Flue Gasket | In Stock £4.94 | |||
| 6 | GZ11084 | Test Point Hatch Plate | In Stock £19.60 | |||
| 7 | ME1348 | Aeration Plate | This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | GZ8471 | Embaglow | In Stock £18.49 | |||
| 9 | GZ11637 | Instructions & Fixing Kit | This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | CE0777 | Log Set | This part is now obsolete and can no longer be ordered as a spare. | |||
| 11 | CE0746 | Log Vermiculite | In Stock £15.49 | |||
| 12 | GZ11094P | Burner Assembly - LPG | This part is now obsolete and can no longer be ordered as a spare. | |||
| 13 | CE0977 | Side Panel Right Hand - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 13 | CE1258 | Side Panel Right Hand - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | CE0832 | Base Side Right Hand - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 14 | CE1262 | Base Side Panel Right Hand - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 15 | CE0834 | Base Front - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 15 | CE1261 | Base Front Panel Right Hand - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 16 | GZ8432 | Base Infill Angle Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 17 | GZ8488 | Glass & Rope Seal Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 18 | GZ8103 | Side Frame Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 19 | GZ8233 | Glass Door Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 20 | CE0833 | Base Front Left Hand - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 20 | CE1263 | Base Front Panel Left Hand - Black Reed | In Stock £21.00 | |||
| 21 | CE0976 | Side Panel Left Hand - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 21 | CE1259 | Side Panel Left Hand - Black Reed | In Stock £79.92 | |||
| 22 | CE0776 | Base Side Left Hand - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 22 | CE1264 | Base Side Panel Left Hand - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 23 | CE0773 | Back Panel - Vermiculite | This part is now obsolete and can no longer be ordered as a spare. | |||
| 23 | CE1260 | Back Panel - Black Reed | This part is now obsolete and can no longer be ordered as a spare. | |||
| 24 | GZ11572 | Top Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||
| 25 | GZ8440 | Airduct Aperture Baffle | This part is now obsolete and can no longer be ordered as a spare. | |||
| 26 | GZ7198 | Upper Lining Retaining Bracket | This part is now obsolete and can no longer be ordered as a spare. | |||
| 27 | GZ7296 | Rear Lining Retaining Bracket | In Stock £10.88 | |||
| FA0422 | 100mm D Inner Silicone Extruded Flue Seal | In Stock £6.50 | ||||
| FA0423 | 150mm D Outer Silicone Extruded Flue Seal | Available to Order £7.16 | ||||

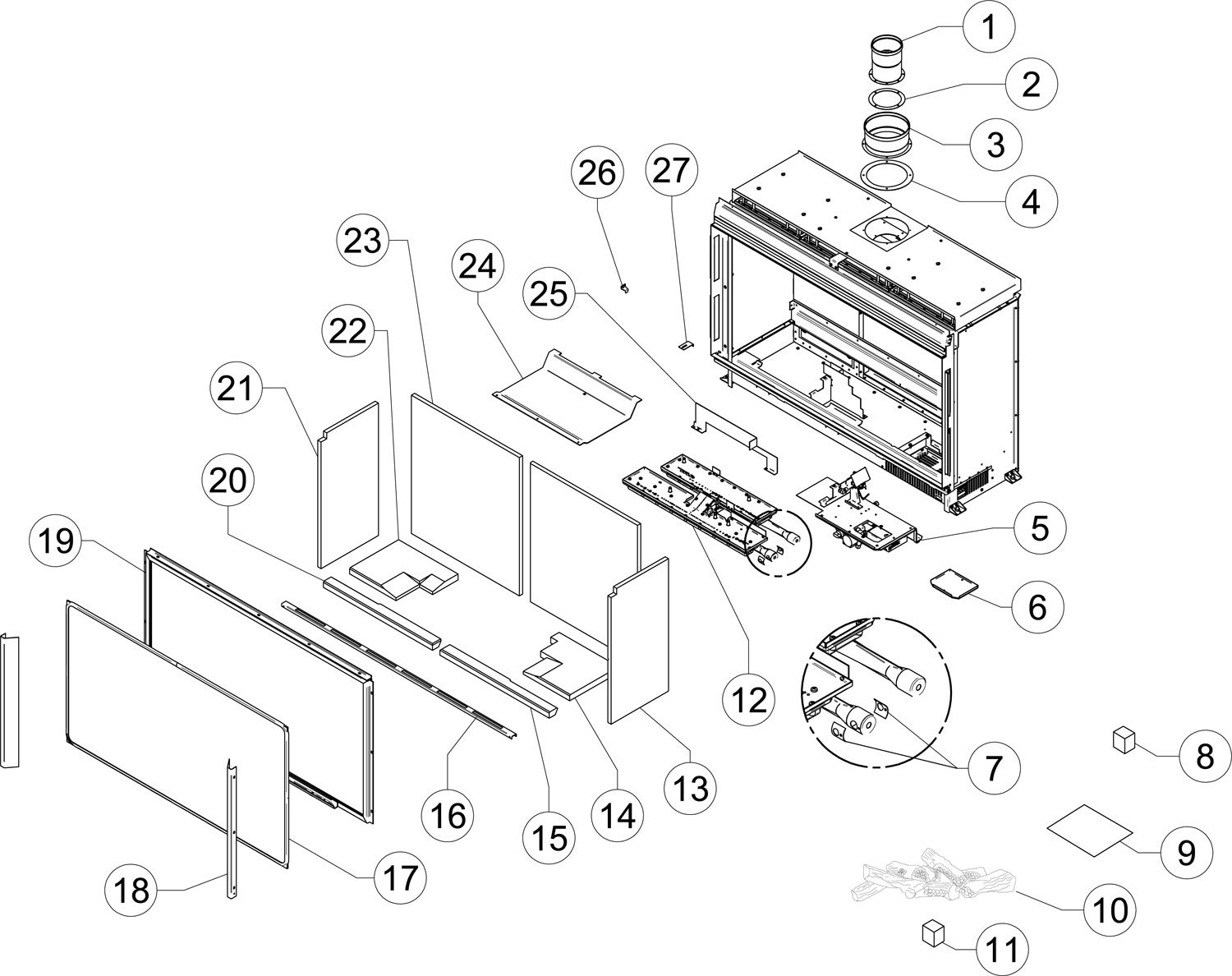

Drawing: 134-493, 134-544
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | PI0075 | Electrode | In Stock £3.66 | |||
| 2 | PI0070 | Pilot Burner - LPG | In Stock £40.80 | |||
| 3 | GC0136 | Thermo Current Switch | In Stock £13.30 | |||
| 4 | EL0563 | Solenoid Valve | In Stock £149.00 | |||
| 5 | GC0124 | Interrupter Block | In Stock £22.03 | |||
| 6 | EL0570 | Wall Plate
This part will soon be obsolete |
In Stock £45.76 | |||
| 7 | EL0568 | Thermostatic Handset | In Stock £170.94 | |||
| 8 | EL0409 | Dry Lining Box | In Stock £7.22 | |||
| 9 | GC0144 | Touchpad Cable | In Stock £85.25 | |||
| 10 | GC0125 | Ignition Cable | In Stock £11.35 | |||
| 11 | GC0128 | Switch With Cable | In Stock £20.26 | |||
| 12 | GC0138 | 3m Battery Cable | In Stock £36.64 | |||
| 13 | EL0410 | Battery Holder | In Stock £10.36 | |||
| 14 | EL0564 | Receiver | In Stock £219.00 | |||
| 15 | GC0095 | Restrictor Elbow | In Stock £16.66 | |||
| 16 | GC0133 | Connection Cable - 360mm | In Stock £19.60 | |||
| 17 | GC0166 | Mag Unit | In Stock £54.00 | |||
| 18 | GC0123K | Valve Kit Please note - Serial number required when ordering this part
| In Stock £256.42 | |||
| 19 | GC0137 | 8mm Compression Tee Fitting | In Stock £14.15 | |||
| 20 | GC0024 | Shear Nut & Olive | In Stock £7.10 | |||
| 21 | IN0049 | Elbow Injector - 95 | In Stock £23.75 | |||
| 22 | IN0052 | Injector - 120 | In Stock £29.26 | |||
| 23 | PI0074 | Thermocouple | In Stock £21.76 |

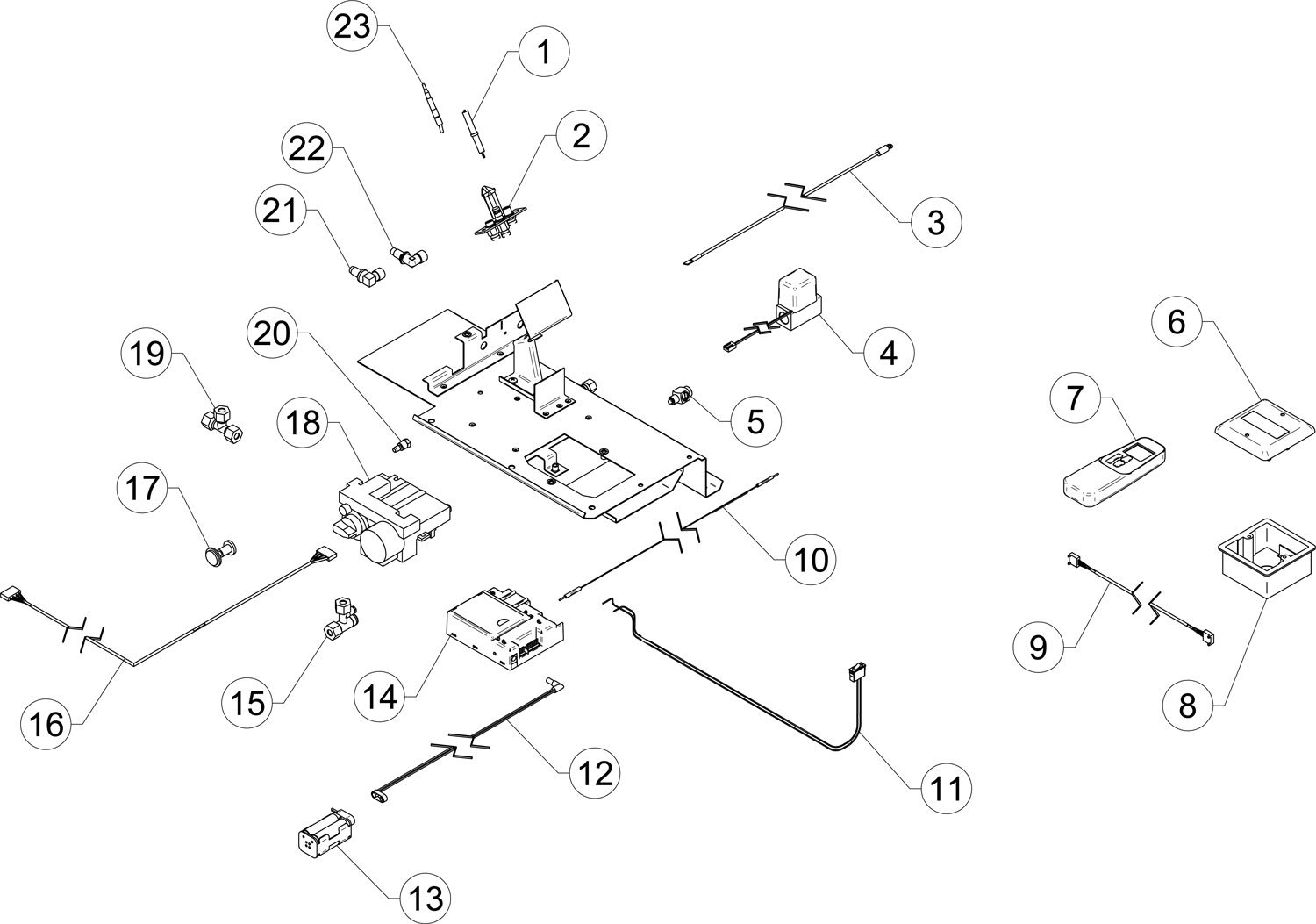

Drawing: 134-493, 134-544
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
134-493 134-544
DIMENSIONS:
1176 x 896 x 391mm (w x h x d)
