Riva2 600 Thermostatic Logs – LPG – Balanced Flue
134-702
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC0231 |  |
Inner Spigot | In Stock £20.21 | ||
| 2 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 3 | MEC0232 |  |
Outer Spigot | In Stock £25.26 | ||
| 4 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 5 | FA0354 |  |
Silicone Seal - Inlet | In Stock £2.28 | ||
| 6 | ME3746 | Gasket Plate | In Stock £3.38 | |||
| 7 | N/A Assembly | See part 8
| Sold as part of an assembly. | |||
| 8 | 934-251 | Riva2 600 CF / BF Brick Effect Lining Set Assembly including parts 7 and 19
| In Stock £309.00 | |||
| 8 | 934-534 | Riva2 600 CF / BF Black Glass Lining Set Assembly including parts 7 and 19
| Available to Order £489.00 | |||
| 8 | 934-405 | Riva2 600 CF / BF Ledgestone Lining Set Assembly including parts 7 and 19
| In Stock £309.00 | |||
| 9 | GZ15938 | Rear Liner Lower Retainer Assembly | In Stock £24.95 | |||
| 10 | GZ15542 | Support Bracket - RH | In Stock £7.96 | |||
| 12 | GZ15484 | Riva2 600 Side Frame Cover | In Stock £21.76 | |||
| 15 | GZ15547 | Door Assembly | Available to Order £704.86 | |||
| 16 | GZ15541 | Support Bracket - LH | In Stock £7.96 | |||
| 17 | GZ10010 | Emberbed & Burner Assembly | Part available for Trade Account Customers only | |||
| 18 | CE2054 | Log Set | In Stock £276.40 | |||
| 19 | N/A | N/A See part 8
| This part is not serviceable and cannot be ordered as a spare. | |||
| 20 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| 21 | GZ15496 | Side Glass Retainer | In Stock £3.35 | |||
| 22 | GZ10786 | Upper Lining Retaining Bracket | In Stock £4.99 | |||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

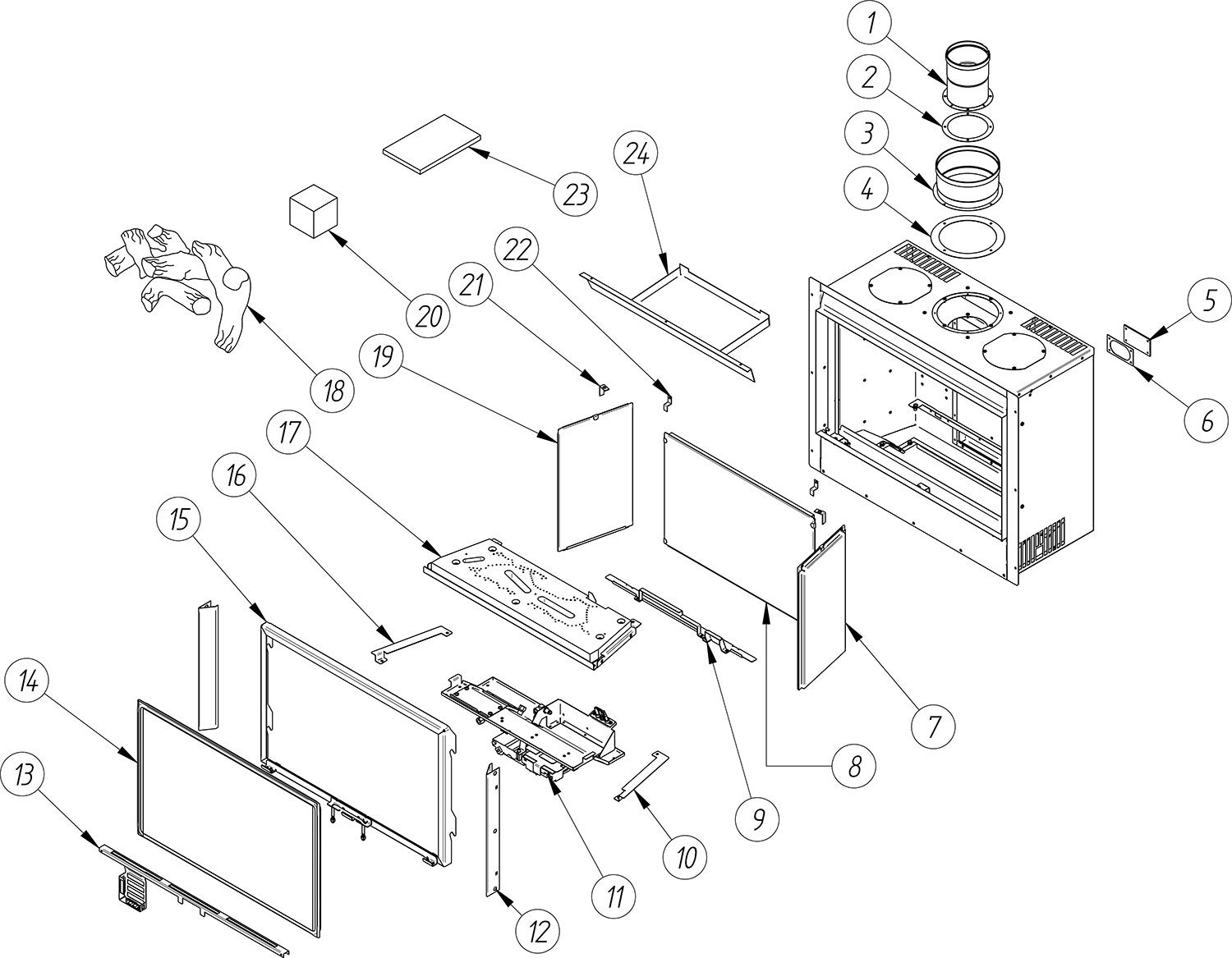

Drawing: 134-702
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | EL0590 |  |
Thermo Current Cable | In Stock £10.15 | ||
| 2 | GC0146 |  |
Battery Cable | In Stock £37.75 | ||
| 3 | GC0125 |  |
Ignition Cable | In Stock £11.35 | ||
| 4 | GC0126 |  |
Thermo Current Cable | In Stock £9.70 | ||
| 5 | GC0133 |  |
Connection Cable - 360mm | In Stock £19.60 | ||
| 6 | EL0571 |  |
Thermostatic Handset | In Stock £101.24 | ||
| 7 | GC0124 |  |
Interrupter Block | In Stock £22.03 | ||
| 8 | EL0616 |  |
Battery Box | In Stock £27.48 | ||
| 9 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only | ||
| 10 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only | ||
| 11 | EL0589 |  |
Receiver | In Stock £165.00 | ||
| 12 | GC0123K |  |
Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 13 | GZ11141 | Access Hatch Assembly | In Stock £9.59 | |||
| 14 | IN0051 | Elbow Injector - 200 | Part available for Trade Account Customers only | |||
| 16 | PI0075 |  |
Electrode | Part available for Trade Account Customers only | ||
| 17 | PI0074 |  |
Thermocouple | Part available for Trade Account Customers only | ||
| 18 | PI0070 |  |
Pilot Burner - LPG | Part available for Trade Account Customers only | ||

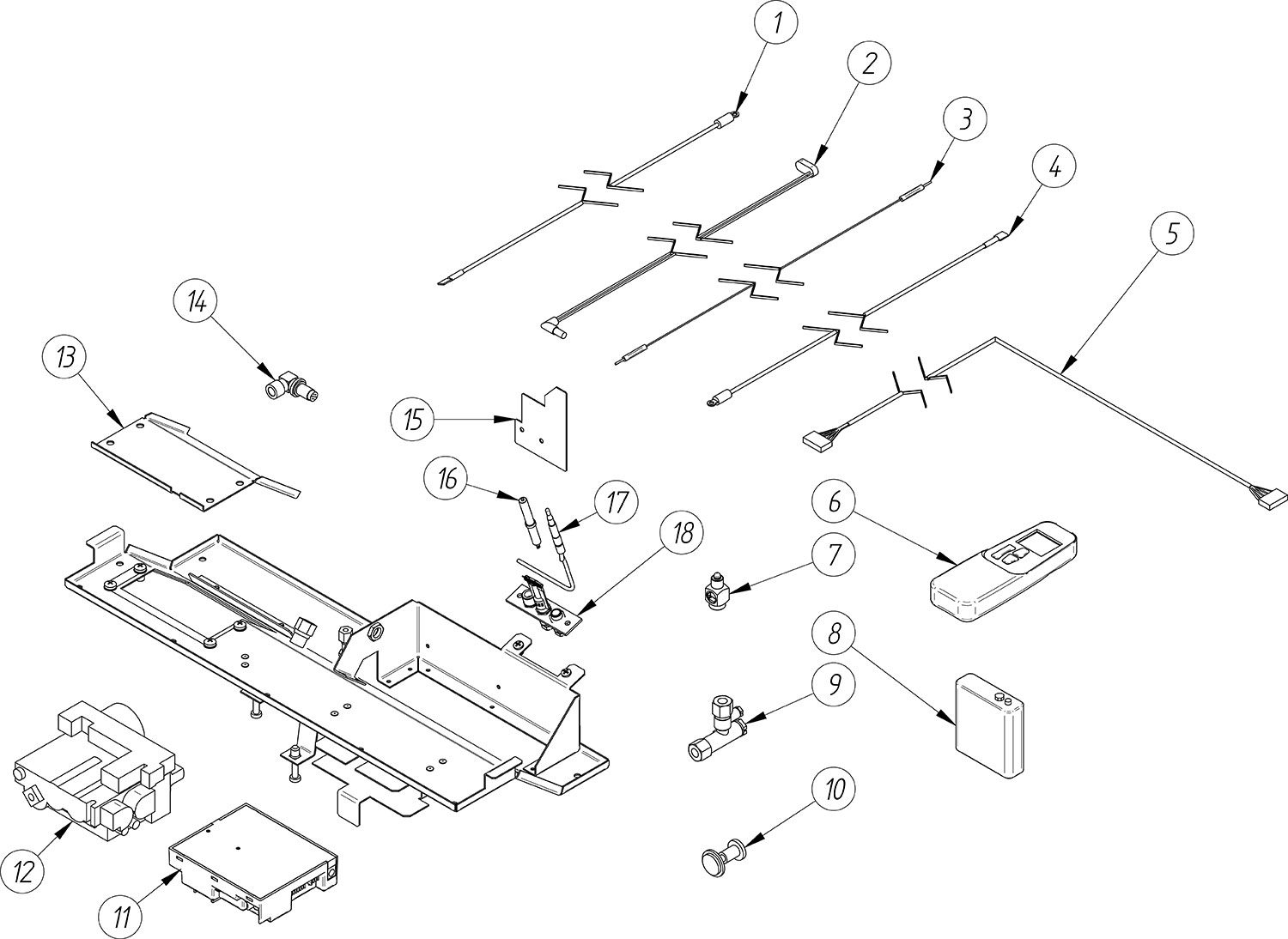

Drawing: 134-702
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
134-702
DIMENSIONS:
729 x 603 x 331mm (w x h x d)
PDF Documents:
