Studio 1 MK2 Logs/Vermiculite – NG – Conventional Flue (123-104) – Discontinued, limited parts available
123-104

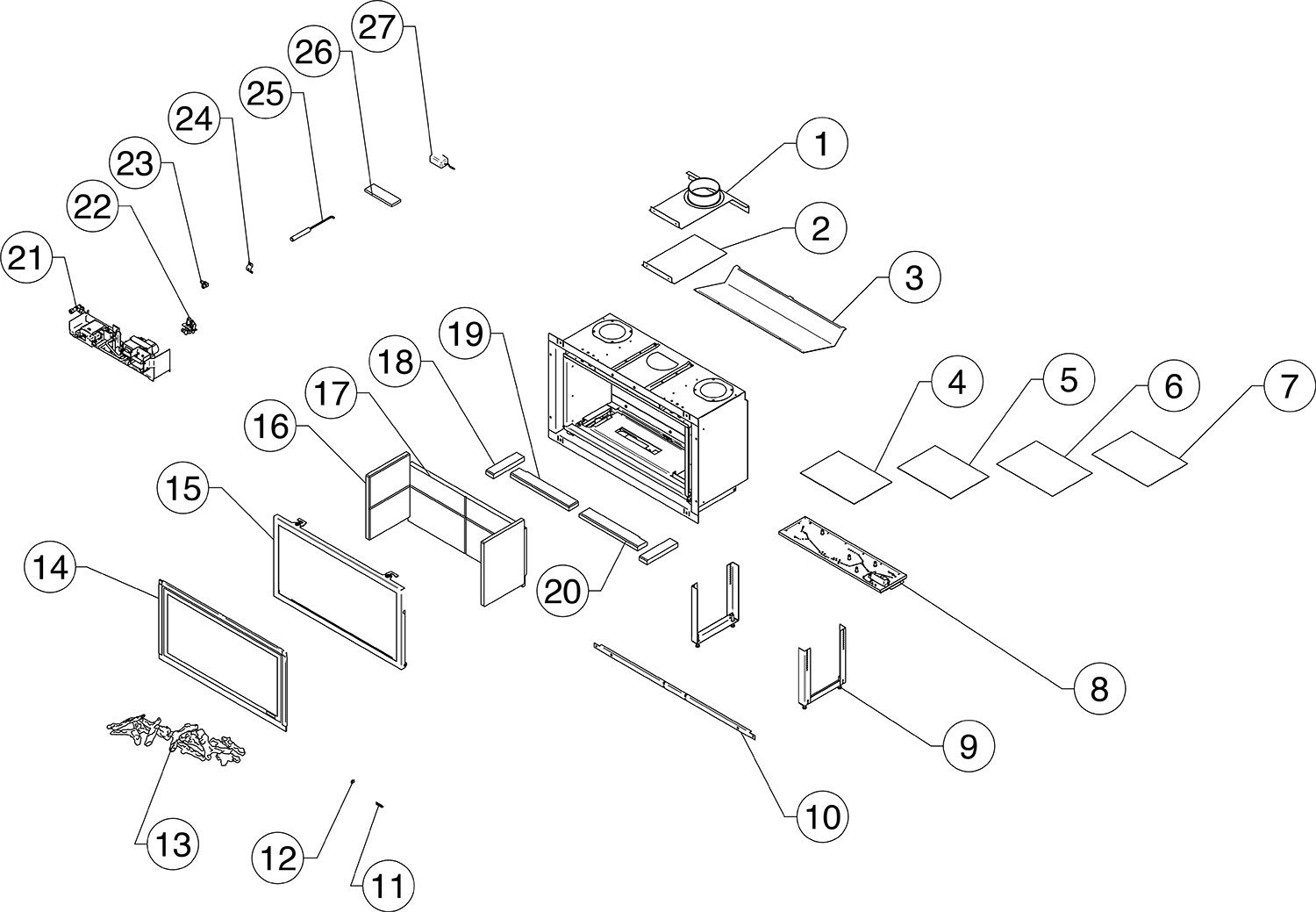

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ6233 | Spigot Mounting Plate | In Stock £69.11 | |||
| 2 | GZ6381 | Top Blanking Plate | In Stock £13.28 | |||
| 3 | GZ6227 | Top Baffle | In Stock £52.49 | |||
| 4 | GZ6897 | Instruction Kit | This part is now obsolete and can no longer be ordered as a spare. | |||
| 5 | GZ6567 | Fixing Kit General Fixing Kit
| Available to Order £68.82 | |||
| 6 | GZ6568 | Fixing Kit Glass/Steel Fixing Kit
| Available to Order £58.56 | |||
| 7 | GZ6569 | Fixing Kit Profil Bauhaus Fixing Kit
| In Stock £17.35 | |||
| 8 | GZ13562 | Studio 1 Burner Assembly | Part available for Trade Account Customers only | |||
| 9 | GZ6246 | Foot Levelling Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | GZ6711 | Mounting Bracket | In Stock £28.31 | |||
| 11 | GZ6361 | Glass Clip Bracket | In Stock £2.80 | |||
| 12 | FA0523 | Steel Edge Clip | In Stock £0.88 | |||
| 13 | CE1839 |  |
Studio 1 Mk2 Log Set | In Stock £345.00 | ||
| 14 | GZ8005 | Glass & Rope Seal Assembly | Available to Order £238.66 | |||
| 15 | GZ6829 | Door Assembly | In Stock £671.56 | |||
| 16 | N/A Assembly | See part 17
| Sold as part of an assembly. | |||
| 17 | 923-010 | Studio 1 Conventional Flue - Vermiculite Lining Set Assembly including part 16
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 18 | N/A Assembly | See part 19
| Sold as part of an assembly. | |||
| 19 | CE1826 | Base Lining Set Black Base Lining Set. Assembly including parts 18 and 20.
| In Stock £132.10 | |||
| 20 | N/A Assembly | See part 19
| Sold as part of an assembly. | |||
| 21 | GZ13570N | ENGINE ASSEMBLY - NG - Mk2 Please note - Serial number required when ordering this part.
| Available to Order £1,219.00 | |||
| 22 | PI0036 |  |
NG Oxypilot Assembly | Part available for Trade Account Customers only | ||
| 23 | IN0023 | Elbow Injector - 360 | Part available for Trade Account Customers only | |||
| 24 | GZ7608 | Aeration Plate | In Stock £2.26 | |||
| 25 | GZ6690 |  |
Door Tool | In Stock £30.53 | ||
| 26 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| 27 | 999-620 | Remote System Mains Adaptor | In Stock £42.00 | |||
Drawing: 123-104
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.

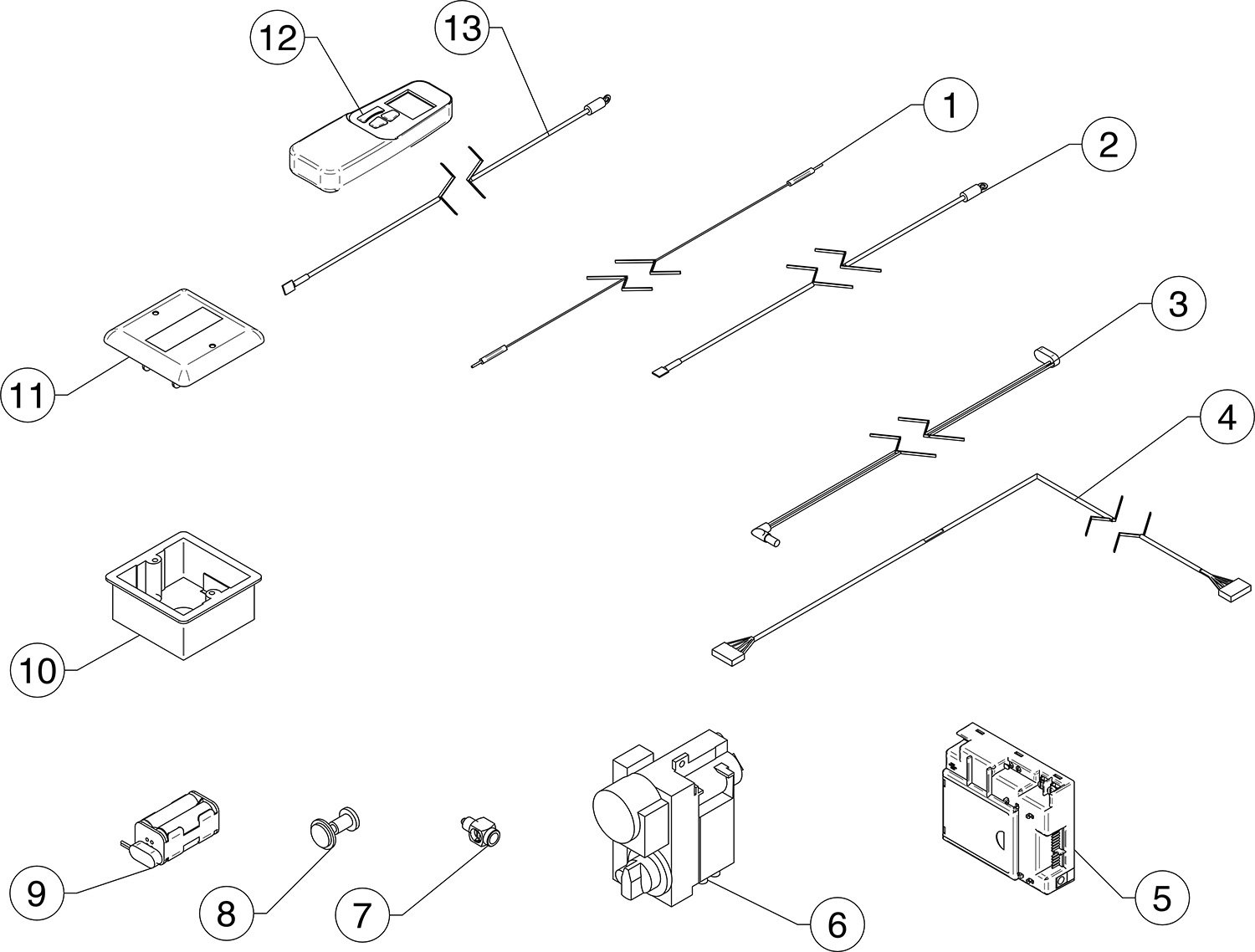

| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0125 |  |
Ignition Cable | In Stock £11.35 | ||
| 2 | GC0136 |  |
Thermo Current Switch | In Stock £13.30 | ||
| 3 | GC0138 |  |
3m Battery Cable | In Stock £36.64 | ||
| 4 | GC0133 |  |
Connection Cable - 360mm | In Stock £19.60 | ||
| 5 | EL0589 |  |
Receiver | In Stock £165.00 | ||
| 6 | GC0123K |  |
Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 7 | GC0124 |  |
Interrupter Block | In Stock £22.03 | ||
| 8 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only | ||
| 9 | EL0410 |  |
Battery Holder | In Stock £10.36 | ||
| 10 | EL0409 | Dry Lining Box
This part will soon be obsolete |
In Stock £7.22 | |||
| 11 | EL0591 | Battery Access Cover | In Stock £47.46 | |||
| 12 | EL0571 |  |
Thermostatic Handset | In Stock £101.24 | ||
| 13 | EL0590 |  |
Thermo Current Cable | In Stock £10.15 | ||
Drawing: 123-104
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
123-104
DIMENSIONS:
829 x 501 x 315mm (w x h x d)
