Riva Vision Midi Rear Exit – NG – Balanced Flue (526-100)
526-100
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GZ9593 | Glass Panel Assembly - Top | This part is not serviceable and cannot be ordered as a spare. | |||
| 2 | GZ8651 | Top Plate | This part is not serviceable and cannot be ordered as a spare. | |||
| 3 | GZ1321 | Outer Flue Blanking Plate | In Stock £17.26 | |||
| 4 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 5 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 6 | GZ9485 | Back Panel | This part is not serviceable and cannot be ordered as a spare. | |||
| 7 | MEC0232 |  |
Outer Spigot | In Stock £25.26 | ||
| 8 | MEC0231 |  |
Inner Spigot | In Stock £20.21 | ||
| 9 | PI0051 |  |
Pilot Burner Body | Part available for Trade Account Customers only | ||
| 10 | PI0052 |  |
Pilot Gasket | In Stock £2.40 | ||
| 11 | PI0026 |  |
Injector - 27 | In Stock £11.27 | ||
| 12 | PI0013 |  |
Hook Olive | In Stock £1.50 | ||
| 13 | PI0014 |  |
Hook Nut | In Stock £3.28 | ||
| 14 | PI0053 |  |
Electrode | Part available for Trade Account Customers only | ||
| 15 | GZ9473 | Side Panel Right Hand - Matt Black | This part is not serviceable and cannot be ordered as a spare. | |||
| 16 | C94225 | M6 Wing Nut | In Stock £0.47 | |||
| 17 | FA0024 | 1/4" Washer | In Stock £0.20 | |||
| 18 | GZ9744 | Fixing Bracket | In Stock £70.16 | |||
| 19 | GZ8710 | Firebox Bracket Rear - Right Hand | In Stock £12.71 | |||
| 20 | PI0011 |  |
Thermocouple | Part available for Trade Account Customers only | ||
| 21 | IN0060 | Elbow Injector - 158 | In Stock £29.26 | |||
| 22 | GZ8652 | Base Plate | This part is not serviceable and cannot be ordered as a spare. | |||
| 23 | PR2029 | Instruction Manual | Click product code to view or download Manual | |||
| 24 | CE0960 | Log Set | In Stock £183.16 | |||
| 25 | CE1014 | Ceramic Panel Right Hand | In Stock £35.52 | |||
| 26 | CE1015 | Ceramic Panel Back | In Stock £33.02 | |||
| 27 | GZ9590 | Log Bar | In Stock £87.68 | |||
| 28 | GZ8665 | Control Cover Assembly | Available to Order £120.98 | |||
| 29 | GZ8656 | Main Door Assembly | In Stock £587.18 | |||
| 30 | GZ9748 | Glass Frame Assembly | Available to Order £267.59 | |||
| 31 | GZ9646 | Burner Assembly - Natural Gas | Available to Order £138.76 | |||
| 32 | CE0997 | Ceramic Panel Base | In Stock £64.66 | |||
| 33 | GZ9553 | Log Retainer | In Stock £6.95 | |||
| 34 | CE1013 | Ceramic Panel Left Hand | In Stock £35.52 | |||
| 35 | CE1030 | Ceramic Panel Top | In Stock £33.58 | |||
| 36 | GZ12254N | Control Assembly - Natural Gas Please note - Serial number required when ordering this part.
| Available to Order £156.54 | |||
| 37 | CE0210 | |
Inner Flue Gasket | In Stock £2.77 | ||
| 38 | GZ1320 | Inner Flue Blanking Plate | In Stock £13.55 | |||
| 39 | CE0211 | |
Outer Flue Gasket | In Stock £4.94 | ||
| 40 | GZ3869 | Aeration Adjuster | In Stock £7.02 | |||
| 41 | GZ8712 | Firebox Bracket Rear - Left Hand | In Stock £11.16 | |||
| 42 | GZ9471 | Side Panel - Left Hand | This part is not serviceable and cannot be ordered as a spare. | |||
| 43 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

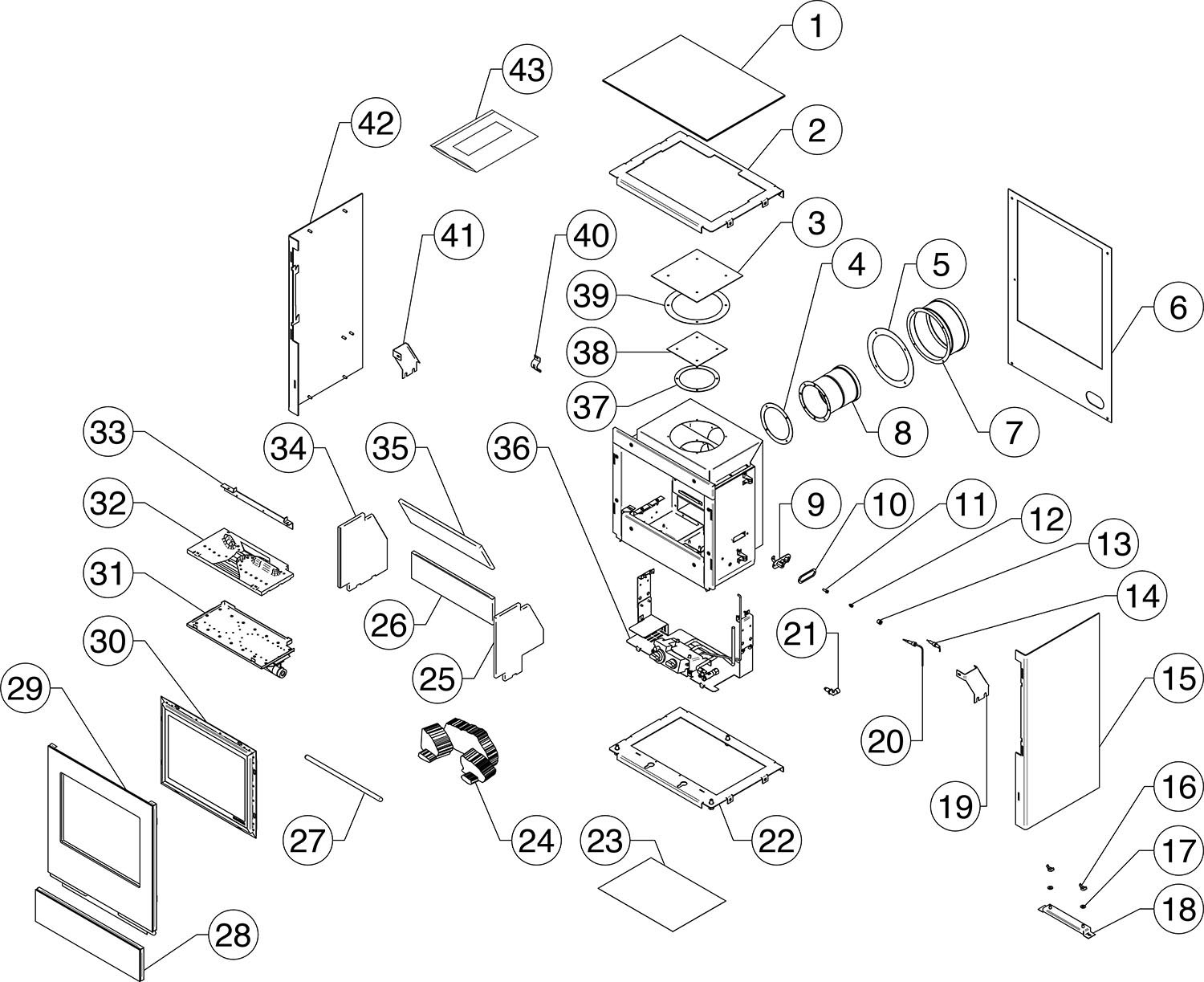

Drawing: 526-100
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0095 |  |
Restrictor Elbow | Part available for Trade Account Customers only | ||
| 2+3 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 3 | EL0238 | Thermostatic Receiver Cable Post 2016 Remote Kit - cable connection change for post 2016 receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 3A | EL0238A | Thermostatic Receiver Cable Pre 2016 Remote Kit - cable connection only suitable for Pre 2016 thermostatic receiver
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 4 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 5 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only | ||
| 6 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 7 | GC0088K |  |
Mertek Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only | ||
| 8 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 9 | GC0090 | Ignition Lead | Available to Order £26.36 | |||
Drawing: 526-100
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
526-100
DIMENSIONS:
415 x 605 x 311mm (w x h x d)
