Marlborough2 Medium – Balanced Flue – NG
559-033
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC0232 |  |
Outer Spigot | In Stock £25.26 | ||
| 2 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 3 | MEC0231 |  |
Inner Spigot | In Stock £20.21 | ||
| 4 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 5 | PI0074 |  |
Thermocouple | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 6 | PI0069 |  |
Pilot Burner - Natural Gas | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 7 | PI0075 |  |
Electrode | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 8 | IN0028 |  |
Elbow Injector - 390 | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 9 | CE1312 |  |
Top Panel - Vermiculite | In Stock £21.16 | ||
| 10 | GZ14882 | Medium Stove MK2 Engine Control Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | |||
| 11 | CE1311 | Back Panel - Vermiculite | In Stock £36.07 | |||
| 12 | GZ11015 |  |
Side Panel Right Hand - Reflective | In Stock £45.76 | ||
| 13 | GZ11217 |  |
Aeration Cover | In Stock £6.79 | ||
| 14 | GZ11001 |  |
Emberbed & Burner Assembly | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 15 | GZ11014 | Side Panel Left Hand - Reflective | In Stock £45.76 | |||
| 16 | CA0853 | Door Casting | In Stock £127.64 | |||
| 17 | GZ14965 | Medium Stockton / Marlborugh Glass Frame Assembly | Available to Order £260.84 | |||
| 18 | CA0765 | Log Retainer | In Stock £37.25 | |||
| 19 | GZ3607 | Skirt | In Stock £15.83 | |||
| 20 | GZ11544 | Top Baffle | In Stock £23.30 | |||
| 21 | CE1304 |  |
Log Set | In Stock £192.04 | ||
| 22 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| 23 | PR2483 | Instruction Manual | Click product code to view or download Manual | |||
| 24 | CE0210 | |
Inner Flue Gasket | In Stock £2.77 | ||
| 25 | GZ1320 | Inner Flue Blanking Plate | In Stock £13.55 | |||
| 26 | CE0211 | |
Outer Flue Gasket | In Stock £4.94 | ||
| 27 | GZ1321 | Outer Flue Blanking Plate | In Stock £17.26 | |||
| 28 | GZ14813 | Flue Blanking Plate | In Stock £69.37 | |||
| 29 | GZ14816 | Flue Infill Plate | In Stock £49.96 | |||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

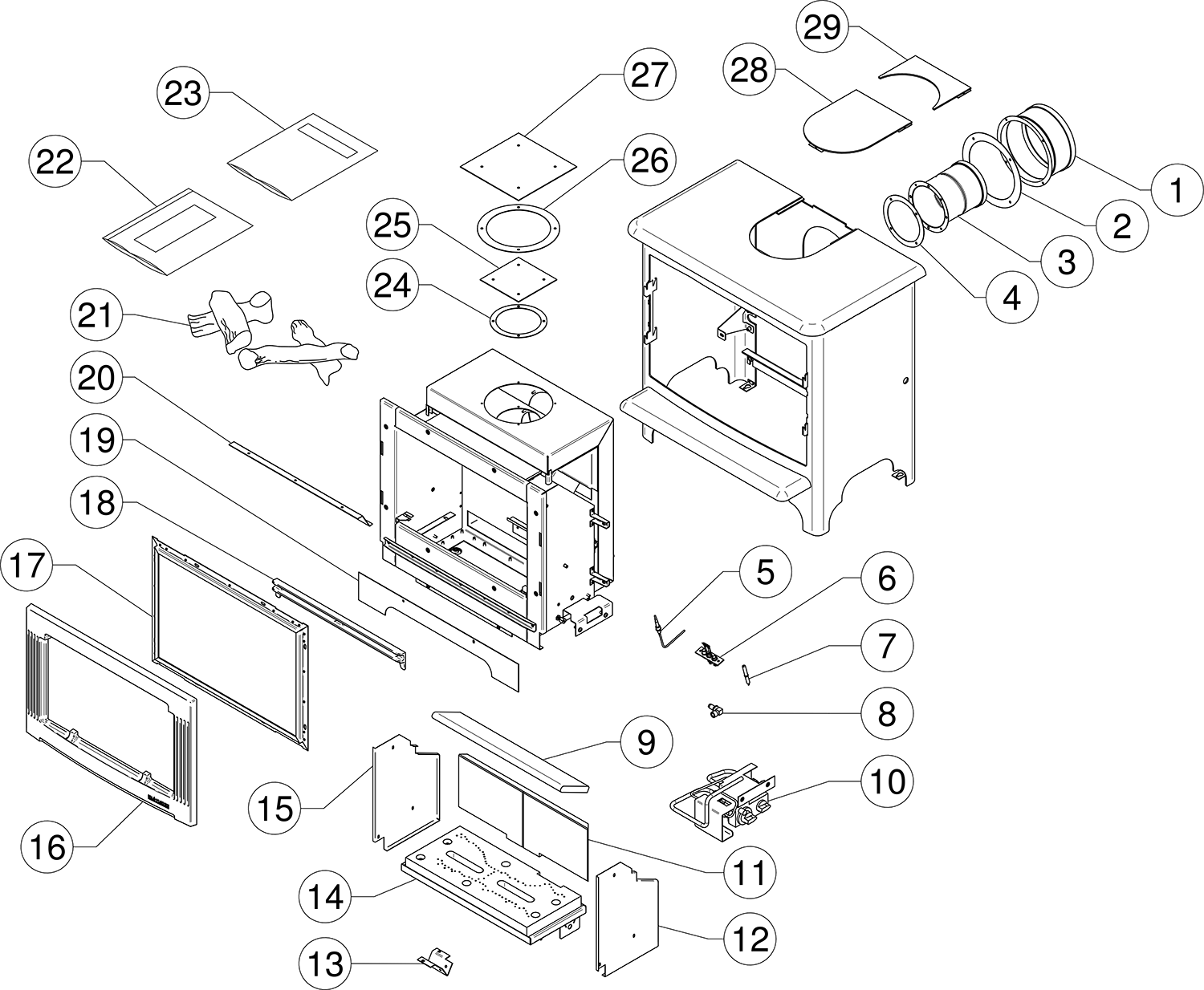

Drawing: 559-033
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | IN0009 |  |
Pressure Test Elbow - 8mm | In Stock £15.83 | ||
| 2+4 | EL0647 |  |
Standard Receiver and Cable | In Stock £108.50 | ||
| 3 | EL0239 |  |
Standard Remote Handset | In Stock £95.24 | ||
| 4 | EL0237 | Standard Receiver Cable | This part is now obsolete and can no longer be ordered as a spare. | |||
| 5+7 | EL0650 |  |
Thermostatic Receiver and Cable | In Stock £176.50 | ||
| 6 | EL0240 |  |
Thermostatic Handset | In Stock £161.87 | ||
| 7 | EL0238 | Thermostatic Receiver Cable | This part is now obsolete and can no longer be ordered as a spare. | |||
| 8 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 9 | GC0087 | Control Cover | This part is now obsolete and can no longer be ordered as a spare. | |||
| 10 | GC0088K |  |
Mertik Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 11 | EL0234 |  |
Geared Motor | In Stock £127.60 | ||
| 12 | EL0241 |  |
Micro Switch & Screw | In Stock £160.31 | ||
| 13 | GC0090 |  |
Ignition Lead | In Stock £26.36 | ||

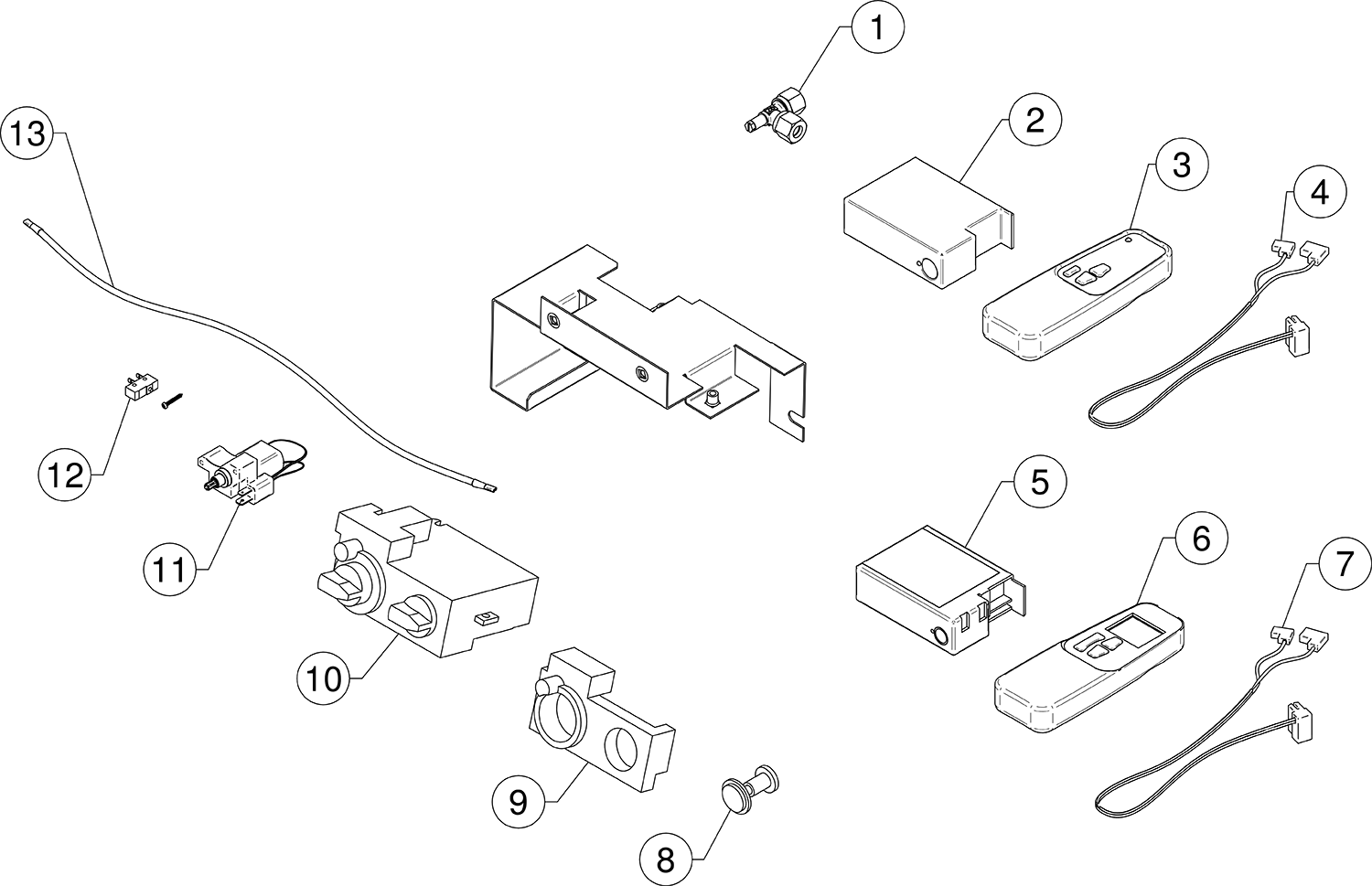

Drawing: 559-033
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
559-033
DIMENSIONS:
600 x 583 x 406mm (w x h x d)
