Studio 2 MK2 – NG – Balanced Flue (123-030)
123-030
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | MEC0231 |  |
Inner Spigot | In Stock £20.21 | ||
| 2 | CE0210 |  |
Inner Flue Gasket | In Stock £2.77 | ||
| 3 | MEC0232 |  |
Outer Spigot | In Stock £25.26 | ||
| 4 | CE0211 |  |
Outer Flue Gasket | In Stock £4.94 | ||
| 5 | GZ13802 | Top Baffle | In Stock £120.98 | |||
| 6 | GZ6567 | Studio General Fixing Kit | Available to Order £68.82 | |||
| 7 | GZ13801 | Studio MK2 BF Instruction Kit | Contact Gazco for more information. | |||
| 8 | GZ13803 | Burner Assembly | Part available for Trade Account Customers only — Find your nearest retailer | |||
| 9 | GZ7612N | Engine Assembly - Natural Gas Please note - Serial number required when ordering this part.
| Available to Order £1,319.00 | |||
| 10 | FA0523 |  |
Steel Edge Clip | In Stock £0.88 | ||
| 11 | GZ6361 |  |
Glass Clip Bracket | In Stock £2.80 | ||
| 12 | CE1840 |  |
Studio 2 Mk 2 Log Set | In Stock £379.00 | ||
| 12 | 923-665 | Studio 2 MK2 Pebble & Stone Set | In Stock £379.00 | |||
| 12 | 923-037 | Studio 2 Mk2 Driftwood Set | Available to Order £379.00 | |||
| 13 | GZ7130 | Door Assembly | In Stock £379.00 | |||
| 14 | GZ7353 | Glass Assembly | Available to Order £260.84 | |||
| 15 | N/A Assembly | See part 16
| Sold as part of an assembly. | |||
| 16 | 923-938 | Studio 2 Balanced Flue - Vermiculite Lining Set Assembly including part 15
This part will soon be obsolete |
In Stock £316.36 | |||
| 16 | 923-476 | Studio 2 Balanced Flue - Black Reeded Lining Set Assembly including part 15
| This part is now obsolete and can no longer be ordered as a spare. | |||
| 16 | 923-294 | Studio 2 Balanced Flue - Black Glass Lining Set Assembly including part 15
| In Stock £569.00 | |||
| 17 | CE1824 | Base Lining Set BF Assembly including parts 18 and 19.
| In Stock £198.70 | |||
| 18 | N/A Assembly | See part 17
| Sold as part of an assembly. | |||
| 19 | N/A Assembly | See part 17
| Sold as part of an assembly. | |||
| 20 | GZ6369 | Control Cover Assembly | This part is now obsolete and can no longer be ordered as a spare. | |||
| 21 | IN0005 | Elbow Injector - 600 | Part available for Trade Account Customers only — Find your nearest retailer | |||
| 22 | PI0077 |  |
Thermocouple | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 23 | PI0069 |  |
Pilot Burner - Natural Gas | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 24 | PI0075 |  |
Electrode | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 25 | GZ3867 | Aeration Plate | In Stock £6.91 | |||
| 26 | GZ6690 |  |
Door Tool | In Stock £30.53 | ||
| 27 | GZ8471 |  |
Embaglow | In Stock £18.49 | ||
| 28 | 999-620 |  |
Remote System Mains Adaptor | In Stock £42.00 | ||
| FA0422 |  |
100mm Inner Balanced Flue Seal | In Stock £6.50 | |||
| FA0423 |  |
150mm Outer Balanced Flue Seal | In Stock £7.16 | |||

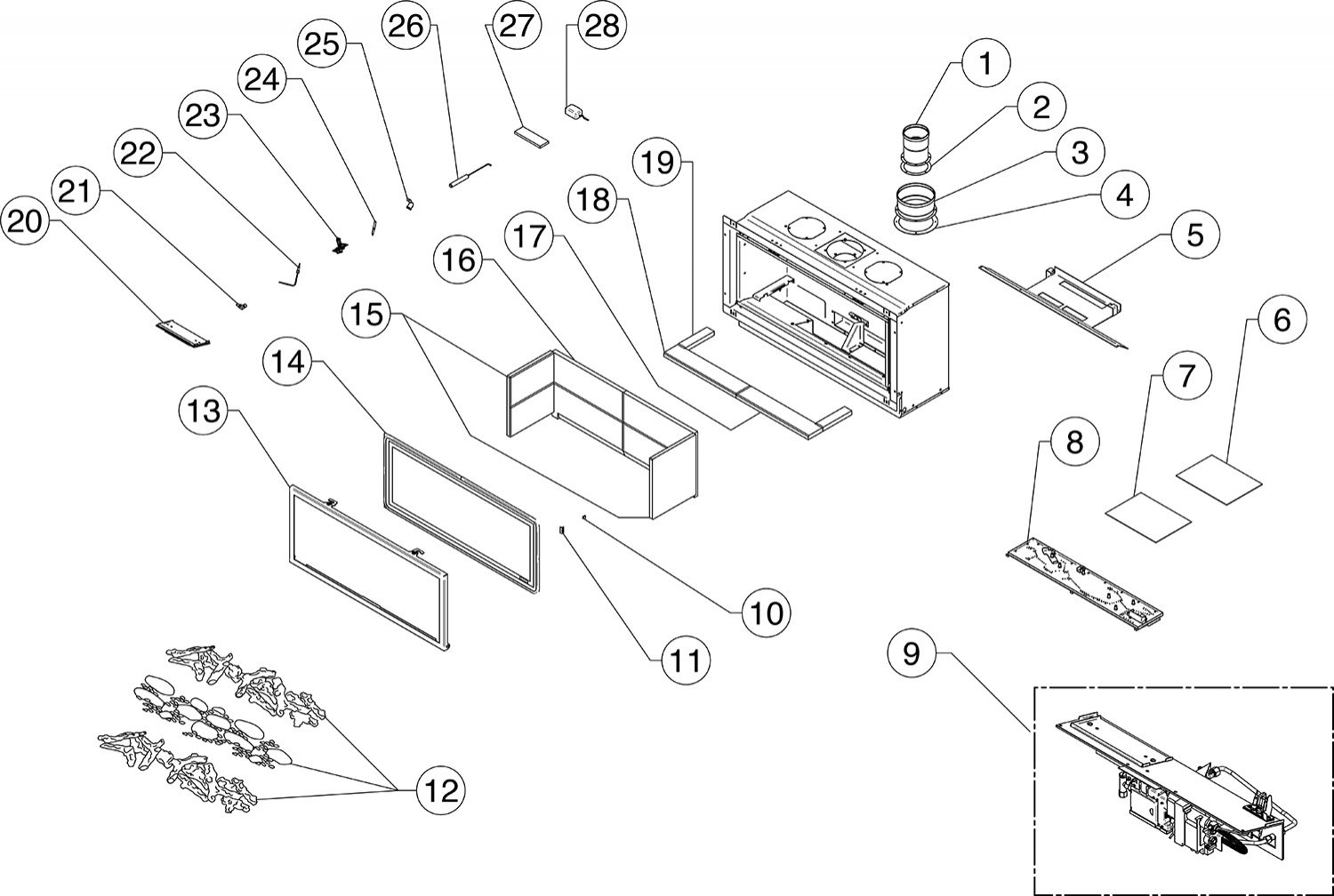

Drawing: 123-030
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
| Ref. | Product Code | Description | Price (inc VAT) | Quantity | ||
|---|---|---|---|---|---|---|
| 1 | GC0125 |  |
Ignition Cable | In Stock £11.35 | ||
| 2 | GC0136 |  |
Thermo Current Switch | In Stock £13.30 | ||
| 3 | GC0138 |  |
3m Battery Cable | In Stock £36.64 | ||
| 4 | GC0133 |  |
Connection Cable - 360mm | In Stock £19.60 | ||
| 5 | EL0589 |  |
Receiver | In Stock £165.00 | ||
| 6 | GC0123K |  |
Valve Kit Please note - Serial number required when ordering this part.
| Part available for Trade Account Customers only — Find your nearest retailer | ||
| 7 | GC0124 |  |
Interrupter Block | In Stock £22.03 | ||
| 8 | GC0166 |  |
Mag Unit | Part available for Trade Account Customers only — Find your nearest retailer | ||
| 9 | EL0410 |  |
Battery Holder | In Stock £10.36 | ||
| 10 | EL0409 | Dry Lining Box
This part will soon be obsolete |
In Stock £7.22 | |||
| 11 | EL0591 | Battery Access Cover | In Stock £47.46 | |||
| 12 | EL0571 |  |
Thermostatic Handset | In Stock £101.24 | ||
| 13 | EL0590 |  |
Thermo Current Cable | In Stock £10.15 | ||

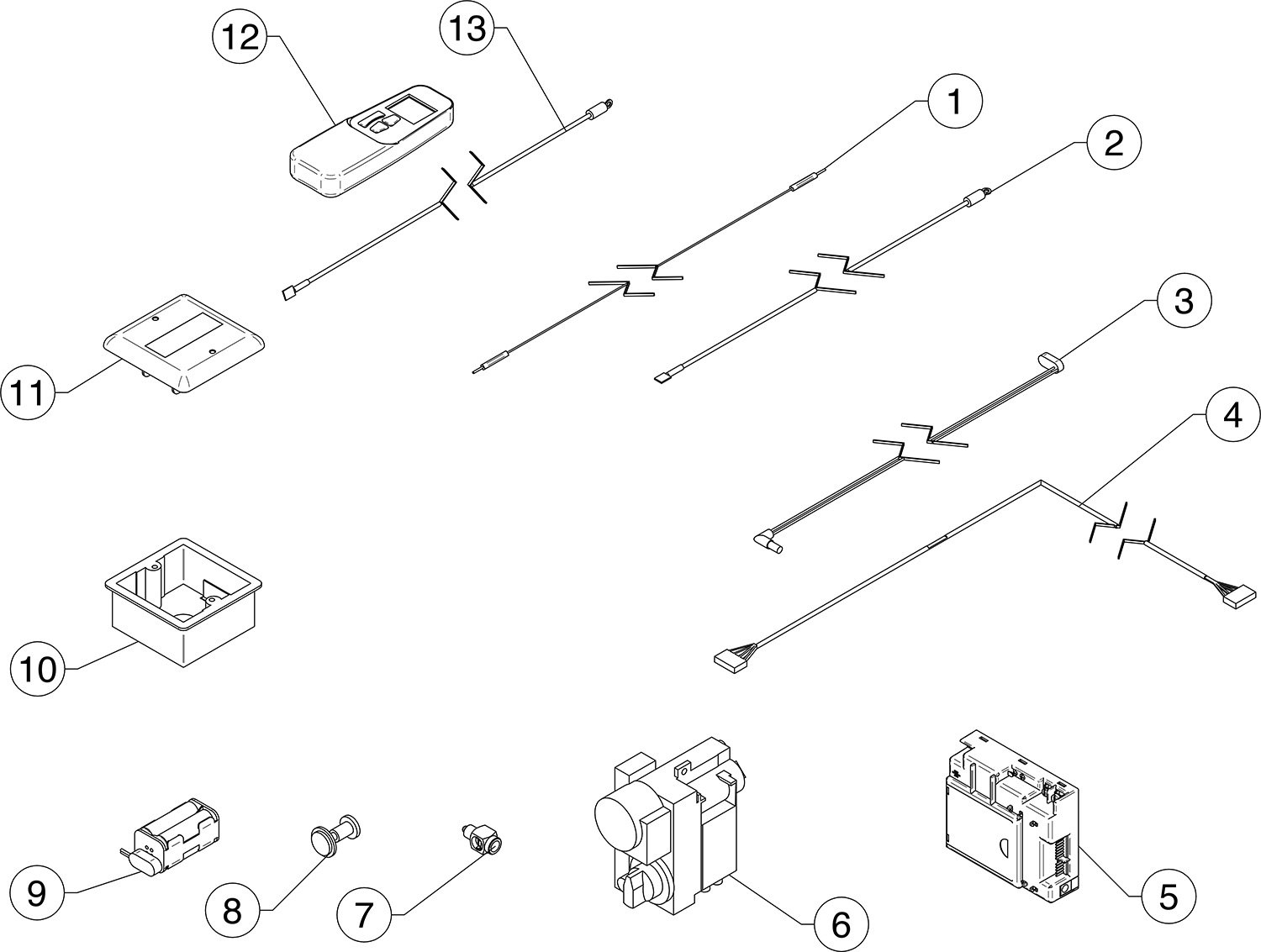

Drawing: 123-030
Do you have the correct appliance?
Before ordering your parts please ensure you have selected the correct appliance. To properly identify your appliance you will need to know your serial number and/or model number. Please use the following guide to help locate your data badge which contains your serial and model number information.
MODEL NUMBERS:
123-030
DIMENSIONS:
1020 x 571 x 345mm (w x h x d)
